V8 specifications

A complete range

Outstanding uptime and reliability

Keeping your promises and your schedule is an absolute must in the transport industry. With the reliability and speed of a Scania V8, your business is bound to benefit.

The Scania V8 truck range makes a bold and confident statement on the road. This top-of-the-range Scania truck can be equipped to the highest standards for operators who demand the most powerful and prestigious vehicle.

At the forefront of technology

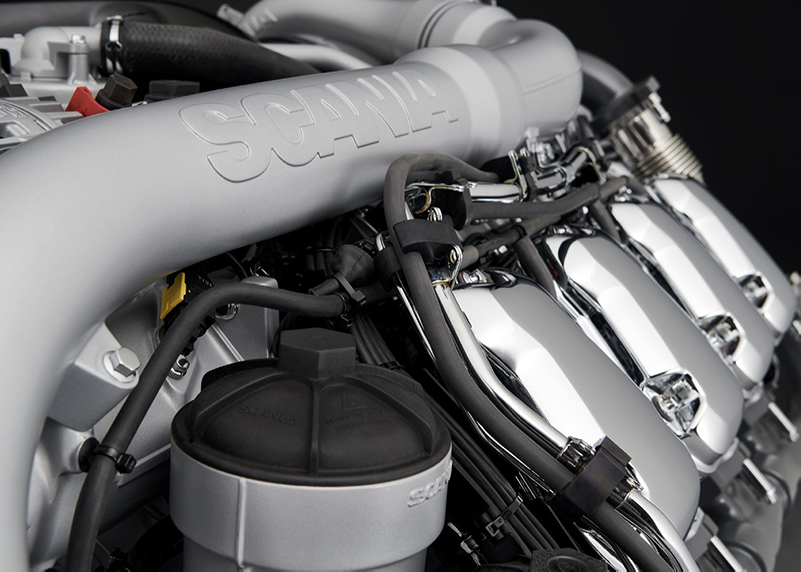

The Scania 16-litre V8 is tailored for your specific needs and built to improve your total operating economy: making it the perfect investment to drive your business further.

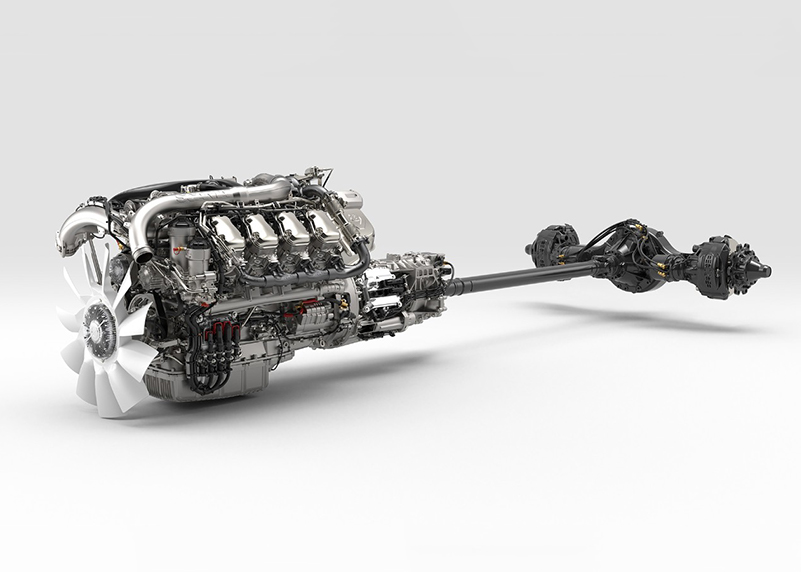

V8 powertrain

The new V8 can deliver fuel savings of up to 6 percent when coupled with the new G33CM Opticruise gearbox and a rear axle gear optimised for cruising in direct drive (gear 12).

As an example, a 590 hp truck in long haulage operations in a hilly topography can achieve savings in this range, whereby the engine will account for two percent, the gearbox for three percent and the rear axle for one percent*.

The wide gear ratio spread makes it possible to optimise the rear axle gear for low engine rpm in cruising speed, without compromising startability. This gives a high performing powertrain for a profitable and more sustainable business.

For example, a 590hp truck used in long haul operations along hilly topography, can expect to achieve fuel savings in this range: the engine accounting for two percent, the gearbox for three percent, and the rear axle for one percent*.

Everything you expect

CHOOSE YOUR POWER

Scania is almost certain to offer a V8 powertrain perfectly suited to your needs.

Output	Torque	Fuel	Emission technology	Engine PTO
770 hp	3700 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800 Nm
660 hp	3300 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
590 hp	3050 Nm	Biodiesel/Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
530 hp	2800 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800Nm

THE SCANIA OPTICRUISE GEARBOX

Scania’s new Opticruise G33CM gearbox is perfectly optimised for use in conjunction with the new V8 range (also compatible with 500 hp and 540 hp 13-litre engines), and offers fast and smooth gearchanges, in addition to reduced fuel consumption and greater driver comfort.

After six years of development and testing, Scania has introduced gearbox with plenty of new technologies, such as variable oil volume, improved gear lubrication by oil spray function and a wider gear spread.

Internal losses have been greatly reduced, resulting in a gearbox that offers fuel savings of 1 percent, whilst a 60 kg weight reduction offers the operator increased payload. Uptime is also increased with the G33CM gearbox, as it offers an oil change interval of up to one million km. These three factors contribute to an improved total operating economy for the vehicle.

Driveability

Better driveability is achieved with a wider gear ratio spread, which includes super crawler and overdrive, that match Scania’s low rev engine philosophy.

Reversing

Instead of a reversing gear, a planetary gear is used for reversing. This solution offers eight reverse gears, and a maximum reverse speed of 30 km/h (particularly useful when a tipper truck is required to reverse over a long distance).

Retarder

A new retarder with maximum brake torque of 4,700 Nm is exclusively available with the G33CM gearbox. The R4700D is fully disengaged from the propeller shaft when not in use in order to reduce drag losses.

PTO

The new G33CM Opticruise gearbox offers nine different PTO specs, spread over three configurations, and with six different interface options. As the new PTOs are pressure lubricated by gearbox oil, they can benefit from the use of a gearbox oil cooler - affording the possibility of up to 160 kW of output power, and continuous operation (previously, some applications were limited to 15 min running intervals).

Please note that the 770 hp V8 engine must be specified with the GRSO926 gearbox which is reinforced therefore better suited for heavy transport assignments and lower average speeds.

Rear axle gears

Scania’s rear axle range offers a robust and weight optimised design with a wide variety of gears and ratios, so you can find the optimal solution for your operation. All gears are offered with differential locks.

Single driven single reduction

Scania's single reduction gears have low complexity and high efficiency and can handle gross vehicle and train weights up to 78 tonnes with a wide range of gear ratios from 2.35 up to 5.57.

Single driven hub reduction

Single driven hub reduction axles are offered for operations where startability, ground clearance, and high gross train weights (GTWs) are critical factors. These are rated up to 80 tonnes GTW with gear ratios spanning 3.77 to 7.18.

TANDEM DRIVEN SINGLE REDUCTION

Tandem driven single reduction is offered for operations where you require traction together with optimal fuel efficiency. The RB662 + R660 tandem gear masters gross vehicle and train weights up to 80 tonnes with gear ratios from 2.92 up to 4.88.

Tandem driven single hub reduction

Our broad tandem driven hub reduction axles are robust and durable and offers great startability and ground clearance. It masters extremely high gross vehicles and train weights to up to 210 tonnes with gear ratios from 3.52 up to 7.63.

Axle configurations

Front, rear, fixed and steered tag axles – Scania can match the requirements of any application. The V8 can be teamed with a wide range of chassis configurations with different heights.
