S-series specification

Noble. Robust. Assured.

Empowered engines


Our powerful and fuel-efficient trucks are legendary. The S-series reinforces this even more.The entire S-series engine range delivers SCR-only emissions control, with the leading Scania Twin-SCR system now available on the latest 13-litre and 16-litre engine range – reducing environmental impact and fuel consumption without compromising strength. Gearing is smoother and faster than ever before.

Fuelled by evolution

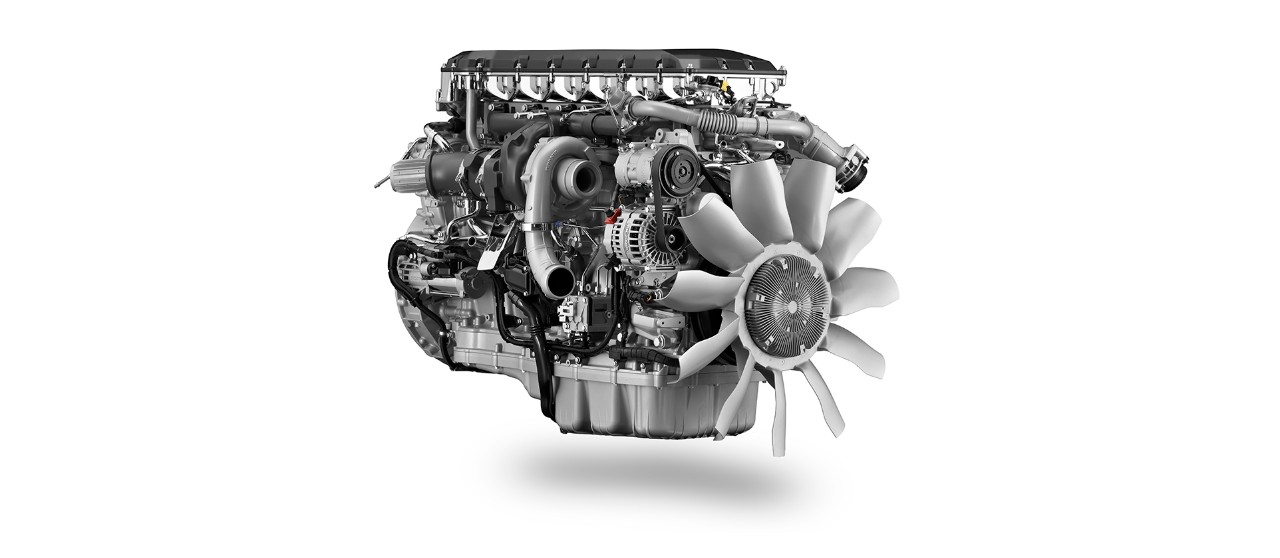

Scania engines are known for their fuel efficiency. The groundbreaking Scania Super 13-litre engine takes that reputation to new heights. With improved engine performance and leading emissions control through the Scania Twin-SCR system, the Scania Super 13-litre engine sets a new industry standard for brake thermal efficiency. This contributes to unrivalled powertrain fuel savings of 8%.

DUAL EMISSIONS CONTROL

The leading Scania Twin-SCR system, with dual AdBlue dosing, ensures a continuously higher reduction of exhaust emissions across a wide range of operations and is ready to meet even the toughest emissions regulations – both today and tomorrow.

GROUNDBREAKING PERFORMANCE

Dual overhead camshafts are introduced to enhance gas exchange and deliver unrivalled performance. Together with significant improvements to combustion performance, lubrication and cooling, and turbocharger efficiency, the Scania Super 13-litre sets groundbreaking new levels of brake thermal efficiency.

POWERFUL ENGINE BRAKING

Through an optional compression release brake system, the Scania Super 13-litre engine introduces high-performance, auxiliary engine braking capacity up to 350 kW – ensuring a smoother and safer drive across challenging terrain.

Power your profitability

Scania delivers a wide range of engines which are compatible with diesel and alternative fuels, so you can find your perfect power to keep your long-distance operations up to the task, mile after mile. This includes the new Scania Super 13-litre engine which introduces a new 560 hp performance step, in addition to groundbreaking combined powertrain fuel savings of 8%.

Output Torque Fuel Emission technology Engine PTO
770 Hp 3700 Nm Diesel/HVO Selective catalytic reduction (SCR) 800 Nm
660 Hp 3300 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm
650 Hp 3300 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm
590 Hp 3050 Nm Biodiesel/Diesel/HVO Selective catalytic reduction (SCR) 800Nm
580 Hp 3000 Nm Biodiesel/Diesel/HVO Selective catalytic reduction (SCR) 800Nm
530 hp 2800 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm
520 hp 2700 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm

Output Torque Fuel Emission technology Engine PTO
560 Hp 2800 Nm Diesel/HVO Twin SCR Up to 1000Nm
500 Hp 2650 Nm Diesel/HVO/FAME Twin SCR Up to 1000Nm
460 Hp 2500 Nm Diesel/HVO/FAME Twin SCR Up to 1000Nm
420 Hp 2300 Nm Diesel/HVO Twin SCR Up to 1000Nm

Output Torque Fuel Emission technology Engine PTO
540 Hp 2700 Nm Diesel/HVO Selective catalytic reduction (SCR) 600 Nm
500 Hp 2550  Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
450 Hp 2350 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
410 Hp 2150 Nm Diesel/HVO/Biodiesel/Ethanol Selective catalytic reduction (SCR) 600 Nm
370 Hp 1900 Nm Diesel/HVO Selective catalytic reduction (SCR) 600 Nm

Output Torque Fuel Emission technology Engine PTO
620 Hp 3000 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 800 Nm
520 Hp 2700 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 800Nm

Output Torque Fuel Emission technology Engine PTO
540 Hp 2700 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
500 Hp 2550  Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
450 Hp 2350 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
440 Hp 2300 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
410 Hp 2150 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
380 Hp 1975 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm

Output Torque Fuel Emission technology Engine PTO
620 Hp 3000 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 800 Nm
520 Hp 2700 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 800Nm

Output Torque Fuel Emission technology Engine PTO
500 Hp 2550  Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
450 Hp 2350 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
440 Hp 2300 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
410 Hp 2150 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm
380 Hp 1975 Nm Diesel/HVO/Biodiesel Selective catalytic reduction (SCR) 600 Nm

Output Torque Fuel Emission technology Engine PTO
560 Hp 2700 Nm Diesel/HVO/Biodiesel Without SCR 800 Nm

Output Torque Fuel Emission technology Engine PTO
460 Hp 2250 Nm Diesel/HVO/Biodiesel Without SCR 600 Nm
410 Hp 2050 Nm Diesel/HVO/Biodiesel Without SCR 600 Nm
360 Hp 1800 Nm Diesel/HVO/Biodiesel Without SCR 600 Nm

Get the right gearbox

Our comprehensive gearbox range can be adapted to all types of transport operations to deliver the full range of power across your Scania powertrain. Offering improved driveability, Scania’s gearboxes can be fitted with the high-performance Scania Retarder.



The Scania Opticruise G25 and G33 set the highest industry standard for gearbox performance. Together with improved overall robustness, the Scania Opticruise remains the leading choice for sustainable, fuel-efficient transport operations.

8-speed

The virtue of this gearbox lies in its simplicity. Rugged and compact, there are no crawler ratios and the smooth, positive action makes gearchanging easy. Options include Scania Opticruise, Scania Retarder and a selection of power take-offs.

8+1-speed

This gearbox offers similar advantages, together with an extra crawler ratio. Based on a 4-speed box, plus a planetary section, its strength is more than a match for the high-torque output of any Scania inline engine. Options include Scania Retarder and a selection of power take-offs.

12-speed

This gearbox is built to tackle the most challenging terrain, making it the perfect choice for demanding long-haulage. Its closely stepped ratios combine light weight with ease of driving with exceptional operating economy.

12+2-speed

For applications that demand extra low-speed pulling power, this gearbox has two extra crawler ratios. Designed for optimised economy, it has proved highly successful for both long-distance and regional distribution, as well as heavy construction applications. The overdrive versions offer higher torque capacity, plus overdrive for low and economic cruising revs. Scania Opticruise and Scania Retarder, as well as a selection of power take-offs, are available for all range-splitter gearboxes.

Scania’s Opticruise gearbox platform, available in two performance steps G25 and G33, delivers improved and speedy gearshifting in combination with excellent comfort and fuel savings of one percent.



The Opticruise’s fully automated clutch control, which allows for precision manoeuvring and smoother gear performance, is complemented by a wider, more efficient 14-gear spread, and new technologies such as variable oil volume and oil spray function to improve gear lubrication and reduce internal losses.



The platform also introduces a new compact, geometric design, as well as low weight cast aluminium housing, resulting in significantly lower sound levels and a reduced component weight of up to 75 kilograms. Additionally, the Opticruise delivers increased uptime and fewer maintenance stops through an extended oil change interval. All this to ensure that your total operating economy is optimised.

The new Scania Opticruise gearbox G33 is available for all V8 engines up to 660 hp as well as the high-out­put 13-litre 500 and 540 hp engines.

Rear axle gears

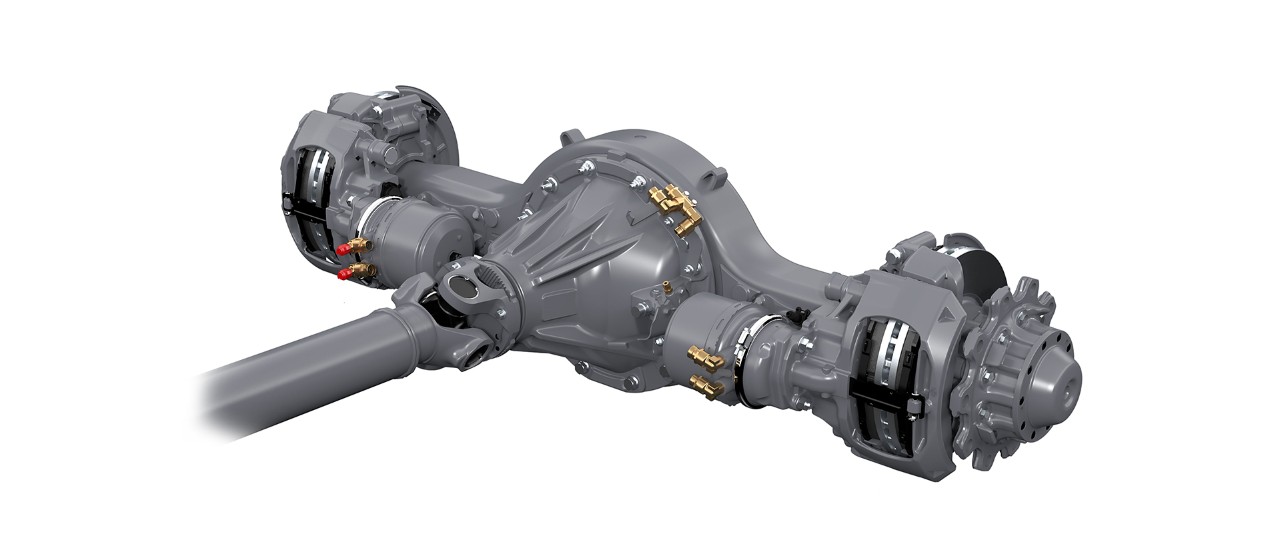

Scania offers a range of single reduction drive axles. Hub reduction is also available in two strengths. The robust and lightweight R756 introduces faster and more efficient gearing, setting new standards for rear axle performance and delivering the improved efficiency range of the Scania powertrain.

Single driven hub reduction

The single driven hub reduction axles are offered for the operations where startability, ground clearance and high gross train weights are favourable. They manage gross vehicle and train weights up to 80 tonnes with gear ratios from 3.80 up to 7.18.

Single driven single reduction

Our gears for single reduction have low complexity and high efficiency and can master gross vehicle and train weights up to 78 tonnes with a wide range of gear ratios from 1.95 up to 5.57.

TANDEM DRIVEN SINGLE REDUCTION

Tandem driven single reduction is offered for operations where you require traction together with optimal fuel efficiency. The RB662 + R660 tandem gear masters gross vehicle and train weights up to 80 tonnes with gear ratios from 2.92 up to 4.88.

Tandem driven single hub reduction

Our broad tandem driven hub reduction axles are robust and durable and offers great startability and ground clearance. It masters extremely high gross vehicles and train weights to up to 210 tonnes with gear ratios from 3.52 up to 7.63.

WIDER GEAR RATIO

The R756 offers a wider gear ratio from 1.95 to 4.11 and is made to master a wide range of vehicle operations up to 53 tonnes GTW.Info point 2 (+ on image)

UNRIVALLED UPTIME

The R756 is engineered to deliver extended oil change intervals and an increased component lifetime.

Axle configurations

Front, rear, fixed and steered tag axles – Scania can match the requirements of any application. The S-series can be teamed with a wide range of chassis configurations with different heights.

4x2
Chassis height
Extra low, low, normal, high

4x4

Chassis height
High

6x2
Chassis height
Normal

6x2/2
Chassis height
Normal

6x2 pusher

6x2/4

Chassis height
Normal, low
6x2 twin-steer

6x4
Chassis height
Normal, high

6x6
Chassis height
High

4x2
Chassis height
Low, normal, high

4x4
Chassis height
High

6x2
Chassis height
Low, normal

6x2/2
Chassis height
Normal

6x2 pusher

6x2/4

Chassis height
Normal
6x2 twin-steer

6x2*4

Chassis height
Low, normal

6x4
Chassis height
Normal, high

6x6
Chassis height
High

8x2
Chassis height
Normal

8x2*6

Chassis height
Low, normal

8x2 rear-steer

8x2/4

Chassis height
Normal

8x2 twin-steer

8x4

Chassis height
Normal, high

8x4*4

Chassis height
Normal

8x4 rear-stear

10x4*6

Chassis height
Normal

10x4 rear-steer

Contact your dealer

Please contact us if you have any questions about our products, services or other activities within the Scania organisation.

With a wealth of choices and an array of modular configurations, you can tailor your truck to fit your trucking life. Make it a Scania.
