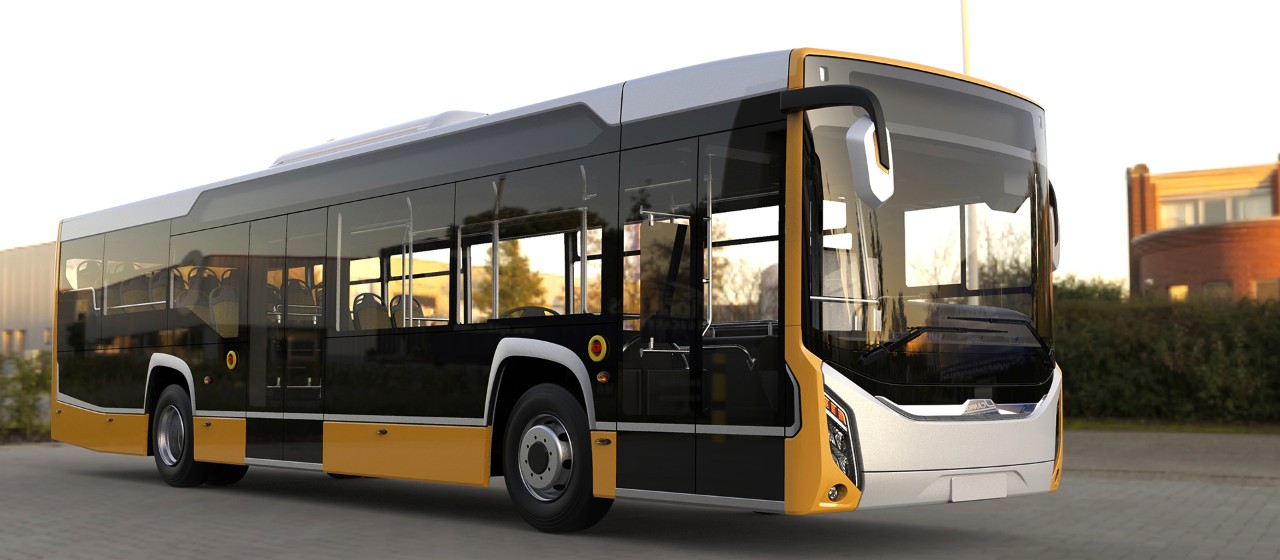

Scania C-chassis

Low floor

Powertrains

The low floor Scania C-chassis offer a wide range of energy efficient and reliable powertrains optimised for inner-city traffic.

Engine Output Torque Energy consumption Battery capacity Vehicle height
Electric motor

300 kW peak

250 kW continuous

2100 Nm 0.75 - 1.5 kWh/km

264 kWh or 330kWh

8 or 10 battery packs resp.

3.30 m
Gearbox:  2-speed

Charging options:

In-route (pantograph charging): DC up to 300kW

Depot (CCS type2): DC up to 150 kW

Volume Output Torque Emission control Fuel options
7-litre 280 Hp (206 kW) 1200 Nm Selective catalytic reduction (SCR) Biodiesel, HVO, Diesel
9-litre 320 Hp (235 kW) 1600 Nm Selective catalytic reduction (SCR) Biodiesel, HVO, Diesel
Fuel capacity:
140 - 360 litres
Gearbox:
6-speed fully automatic with acceleration control

Volume Output Torque Emission control Fuel options
9-litre 280 Hp (206 kW) 1350 Nm Exhaust gas recirculation (EGR) Biogas, natural gas
9-litre 340 Hp (250 kW) 1600 Nm Exhaust gas recirculation (EGR) Biogas, natural gas
Fuel capacity:
1260-1875 litres
Gearbox:
6-speed fully automatic with acceleration control

Axles

 The low floor Scania C-chassis is available in several variants enabling it to meet different operational demands.

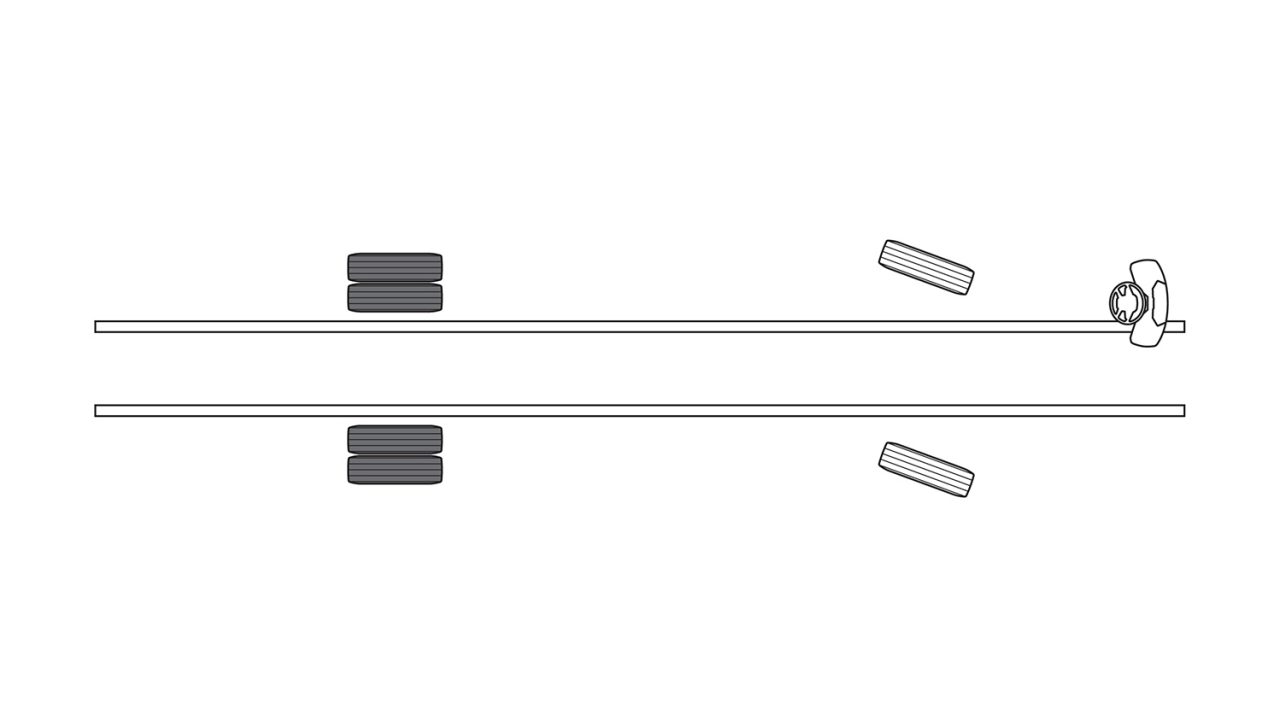

4x2 - independent suspension or rigid axle

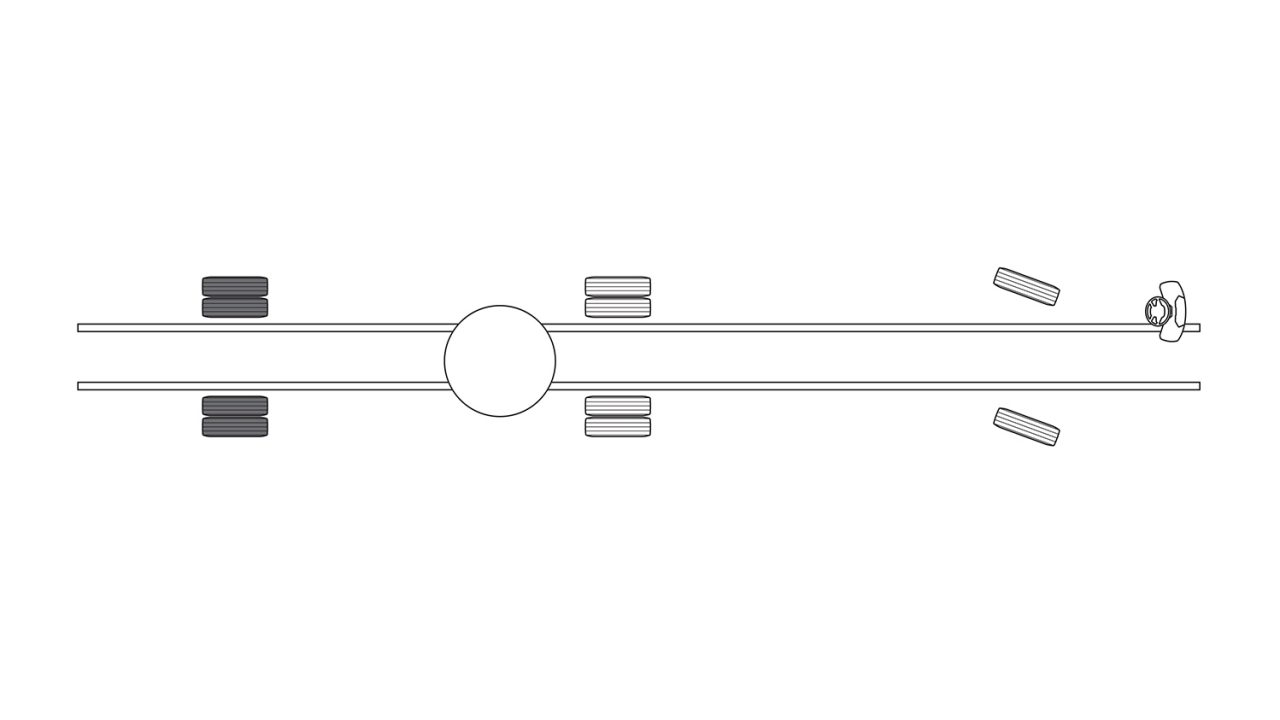

6x2/2 - (artic) independent suspension or rigid axle

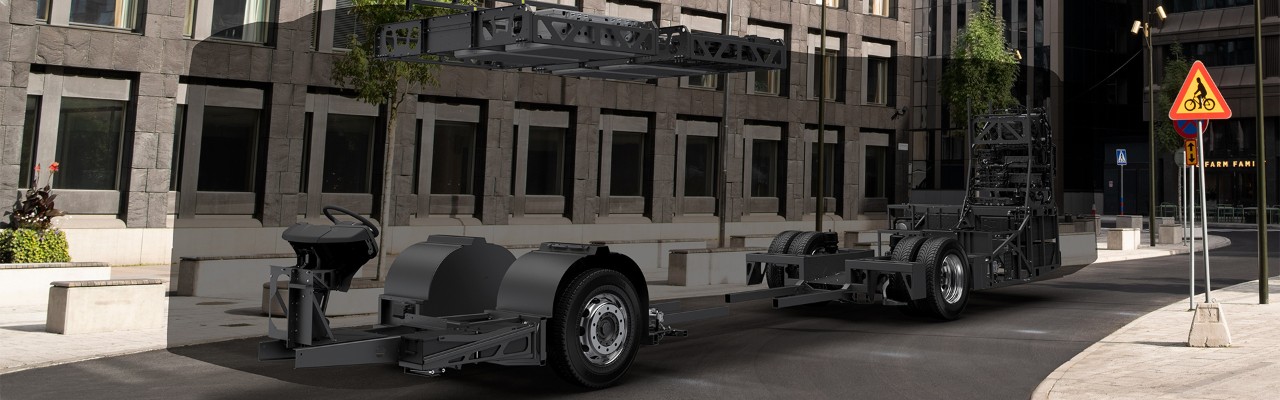

Floor level

 The low entry point and flat floor throughout the bus increases accessibility for all passengers, including wheelchair users and children in strollers. In combination with the wide aisle, these features also contribute to efficient passenger flow.

Design features

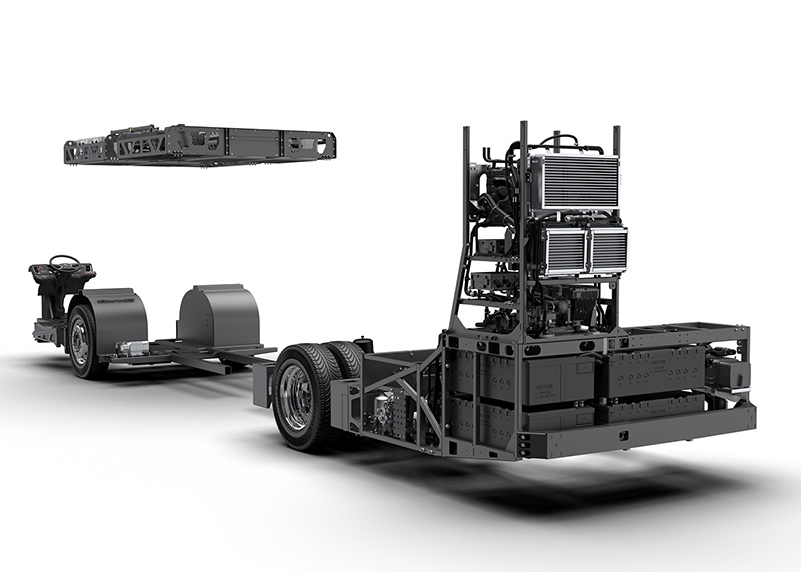

The low floor Scania C-chassis meet the needs of operators on every continent. With total design and production control over chassis and powertrain, Scania delivers unrivalled reliability, durability and performance.

Passenger capacity

The chassis enable a technical capacity of up to 100 passengers. This is achieved through very high axle load capacity, reduced weight, and by not carrying excessive battery weight. The high passenger capacity figure can contribute to a more efficient public transport system and potentially keep costs down by minimising total vehicle fleet investments.

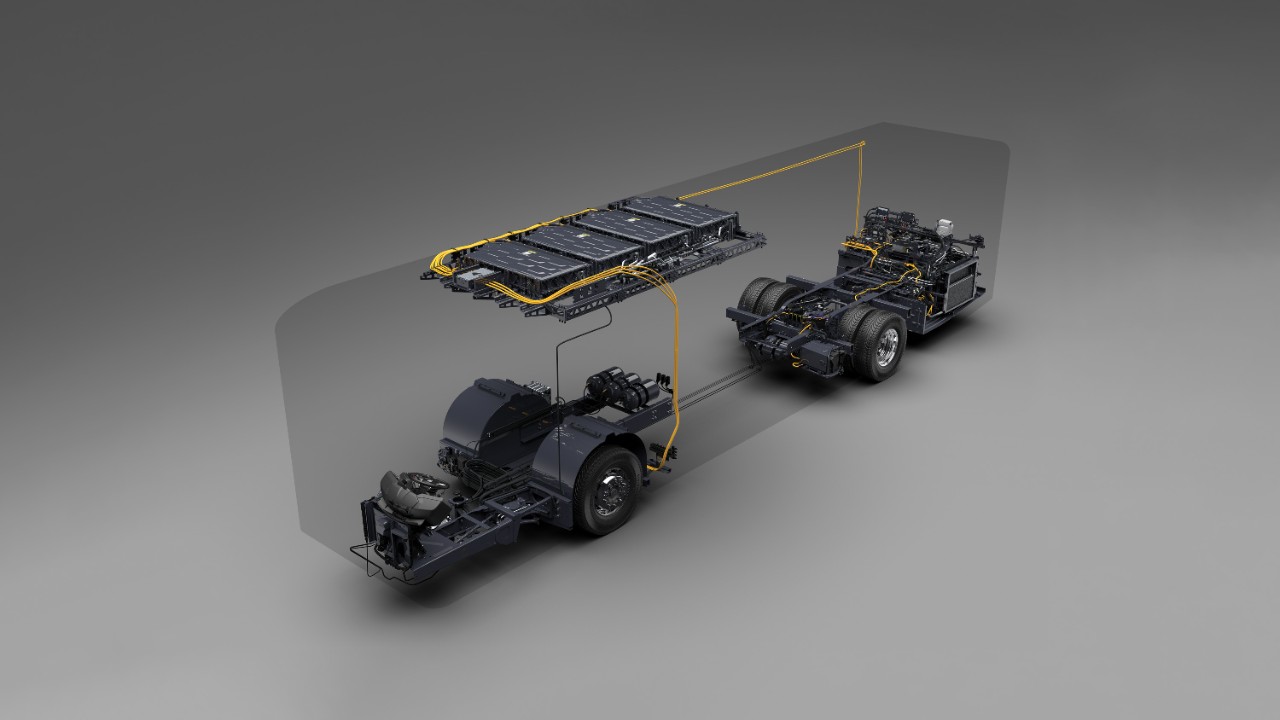

Battery temperature control

Handled by a closed water cooling system that, in extreme ambient temperatures, is assisted by an electric heater or an AC cooling respectively. This AC is integrated in the battery cooling circuit but separated from the passenger and driver AC, resulting in an unaffected passenger environment. These solutions enable propulsion without power limitation in temperatures from -35°C to +40°, for all conditions up to 16% slopes.

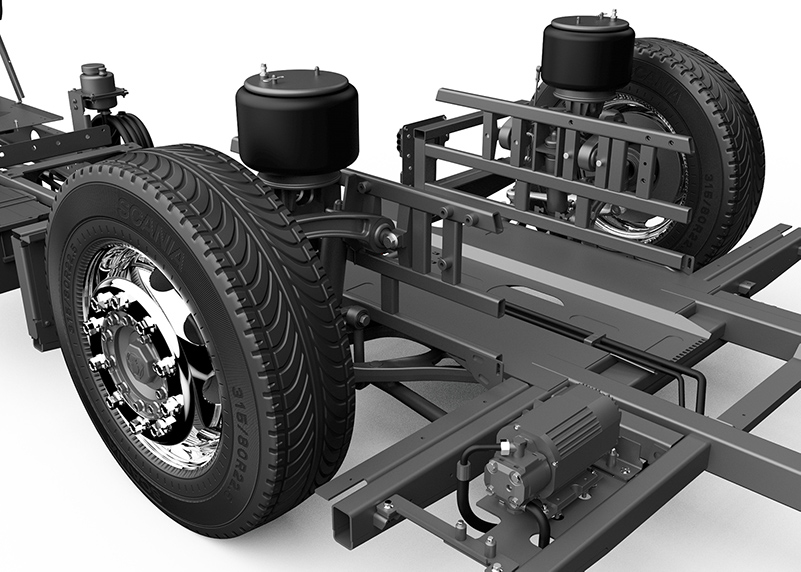

Front suspension technology

Without compromising on passenger capacity, the new independent front suspension offers excellent passenger comfort and enables a wider aisle (900 mm). This results in new layout possibilities, increased passenger flow, space and accessibility.

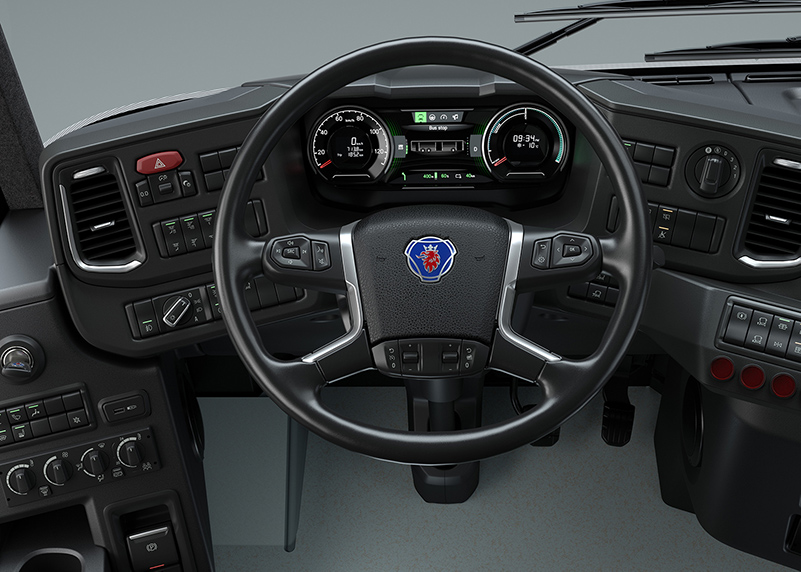

Driver area

Offers excellent ergonomics through all angle step-less seat adjustments, adjustable instrument panel, flexible switch placement . A lower instrument panel increases visibility. The buses have excellent drivability with a great turning radius, advanced driver assistance systems, and improved assisted handling, steering and braking. Also, they offer increased safety, a better climate system and good noise and vibration reduction.

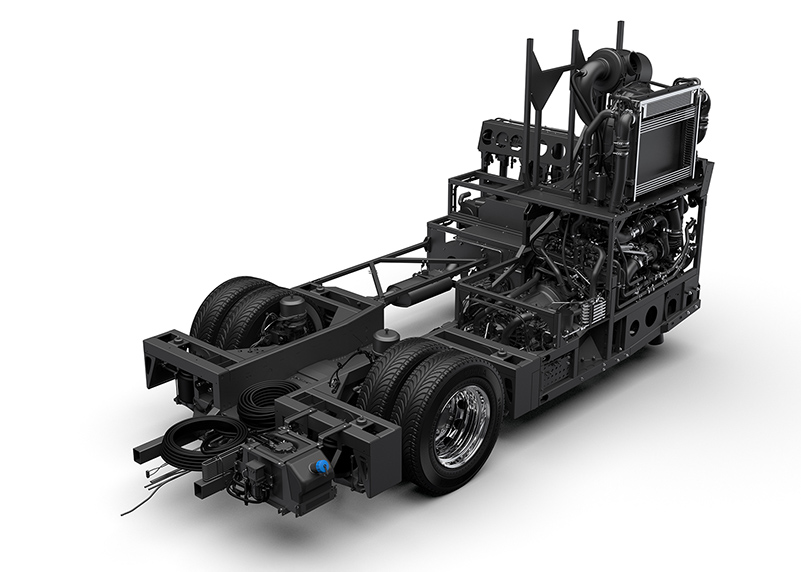

Powertrain technology

The highly dependable, durable, and robust powertrains enable fuel savings of up to 21%, achieved through a number of factors such as; engine efficiency (-6%), changed driveline position (-3%), improved gearbox (-3%), weight reduction (-3%) and the addition of a start/stop function (-6%).

Charging capacity

The chassis come with dual charging capability and can be deployed in a smart charging system, e.g. meaning the bus can leave the depot fully charged and pre-climatised to maximise geographical range. It can then fast charge in-route via pantographs at one or more strategic stops, with charging taking only minutes, thereby maximising utilisation time. Also, this means it does not need to carry unneeded battery weight, resulting in less environmental impact and higher passenger capacity.
