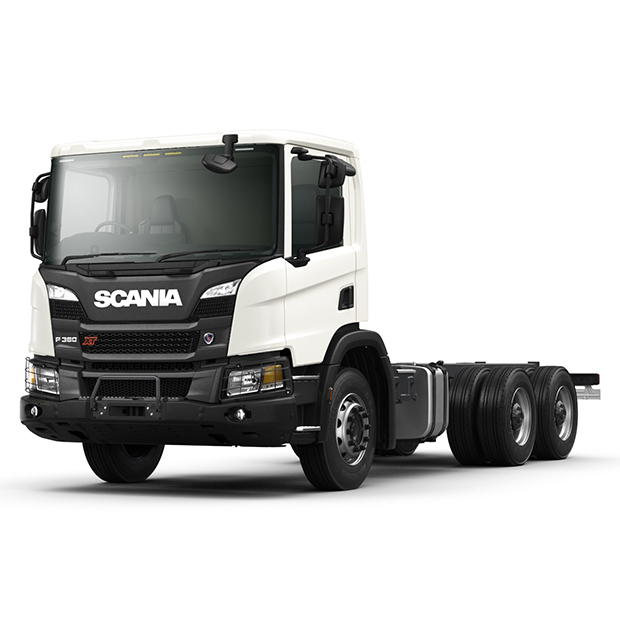

P360 B6x4 HZ Tipper

Tipper, 360hp, Euro 3, Manual Transmission

  • Operation: Off-road
  • Application: Tipper
  • Wheel Configuration: 6x4
  • Cab Type: CP14L
  • Colour: Ivory White
  • Emission Class: Euro 3
  • Engine Type: DC13 134 360 hp
  • Rear Axle Gear Ratio: 4.72
  • Fuel Tank: 300 dm3 (left)
  • Tare Weight: 9470 kg
  • GVW Technical: 41000 kg



Technical data

  • Engine type: DC13 134
  • Power at RPM: 360hp/265kW at 1900 RPM
  • Torque at RPM: 1800 NM at 1000-1350 RPM
  • Gearbox type: GR905
  • Gearbox speed: 8-speed + 1 reverse 1 crawler
  • Rear axle gear ratio: 4.72



*all parameters for reference only

  • Chassis height: High
  • Axle distance: 3750 mm
  • Fuel volume left side: 300 dm3
  • Fuel volume right side: Without
  • Suspension system: Leaf front + Leaf rear
  • Hill hold: With
  • Battery: 2x 140 Ah
  • Alternator: 100A
  • Headlamp type: H4
  • Wheel brake: Drum
  • Exhaust brake: 256kW at 2400 RPM
  • ABS: With
  • Tyre dimension front axle: 315/80
  • Tyre dimension rear axle: 315/80

*all parameters for reference only

  • Roof hatch: Manual
  • Wide angle mirror: Driver + passenger side
  • Windscreen: Tinted
  • Locking type cab: Manual
  • Airhorns on the roof: With
  • Air deflector kit: Optional
  • Heavy duty bumper: With



*all parameters for reference only

  • Seat category, driver side: Air spring basic
  • Seat category, passenger side: Static
  • Seat upholstery driver side: Woven
  • Seat upholstery passenger side: Woven
  • Steering wheel type: Basic
  • Steering wheel: Adjustable tilt
  • FMS C300 with driver ID: With



*all parameters for reference only

  • Cab colour: Ivory White
  • Exterior colour package, front grille: Front grill black
  • Mounting brackets for sub frame: With



*all parameters for reference only
