  • V8 specifications

    A complete range

    Outstanding uptime and reliability

    Keeping your promises and your schedule is an absolute must in the transport industry. With the reliability and speed of a Scania V8, your business is bound to benefit.

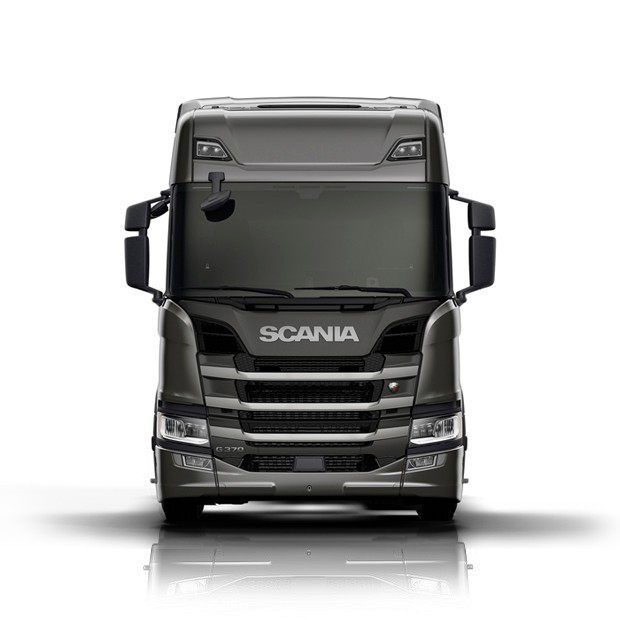

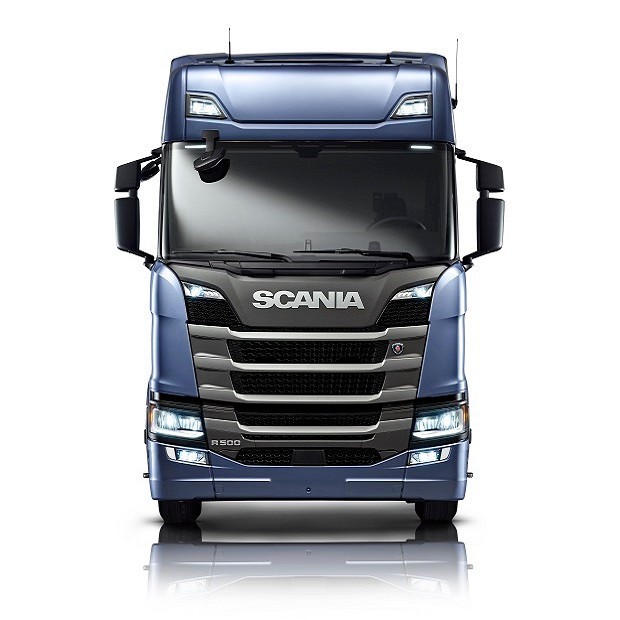

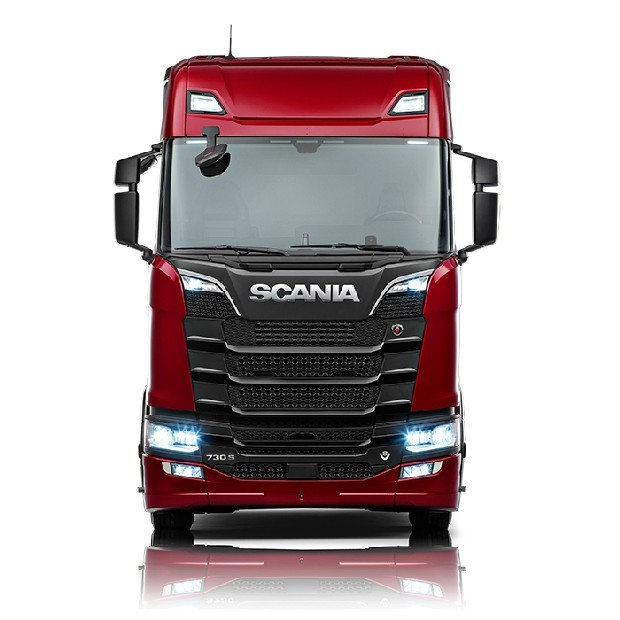

    The Scania V8 truck range makes a bold and confident statement on the road. This top-of-the-range Scania cab can be equipped to the highest standards for operators who demand the most practical and prestigious vehicle.

    Everything you expect

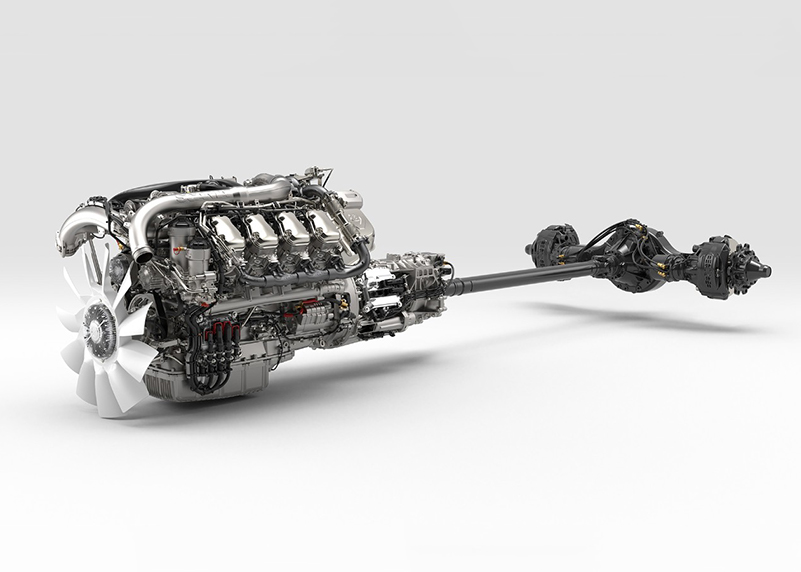

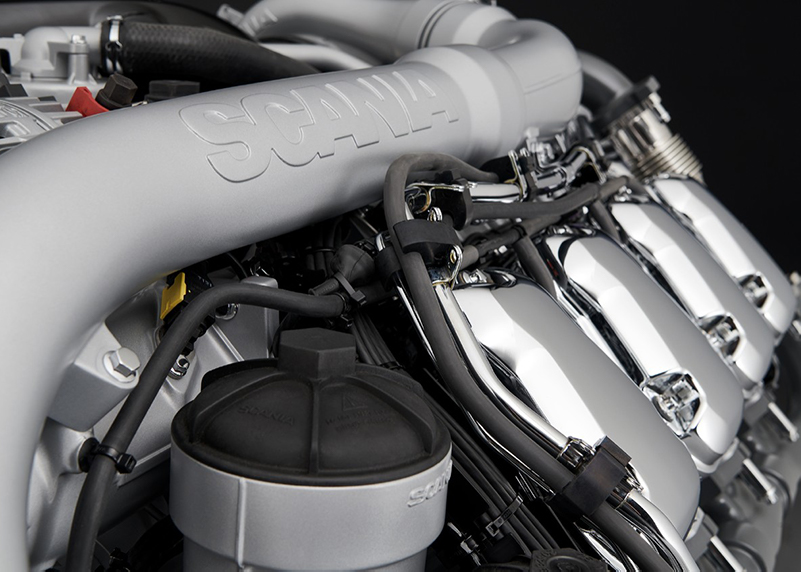

    CHOOSE YOUR POWER

    With the broadest range on the market, Scania offers almost endless possibilities of finding a powertrain that fits your needs perfectly.

    Output Torque Fuel Emission technology Engine PTO
    770 Hp 3700 Nm Diesel/HVO Selective catalytic reduction (SCR) 800 Nm
    660 Hp 3300 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm
    650 Hp 3300 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm
    590 Hp 3050 Nm Biodiesel/Diesel/HVO Selective catalytic reduction (SCR) 800Nm
    580 Hp 3000 Nm Biodiesel/Diesel/HVO Selective catalytic reduction (SCR) 800Nm
    530 hp 2800 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm
    520 hp 2700 Nm Diesel/HVO Selective catalytic reduction (SCR) 800Nm

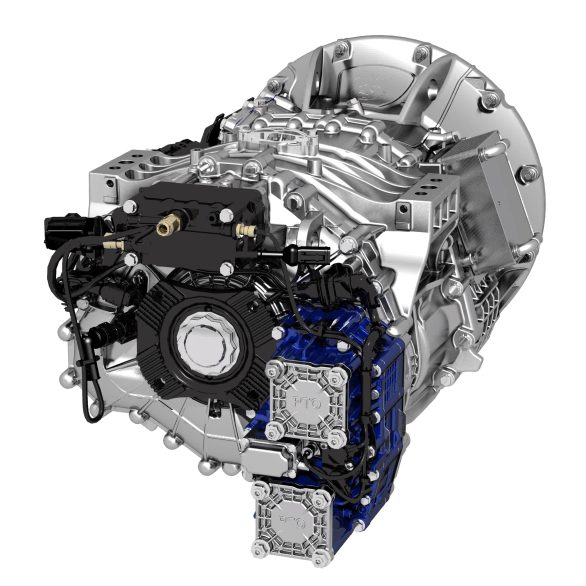

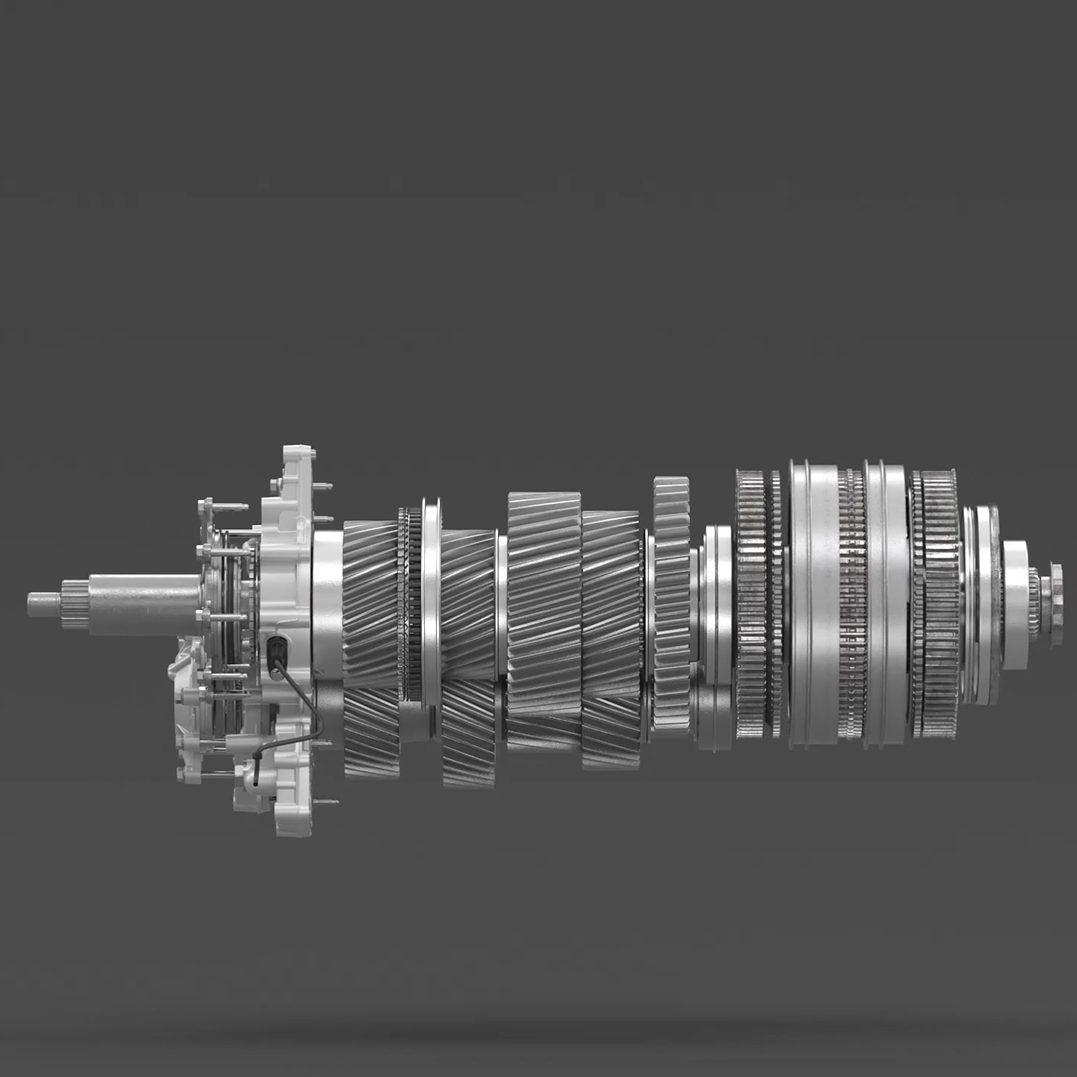

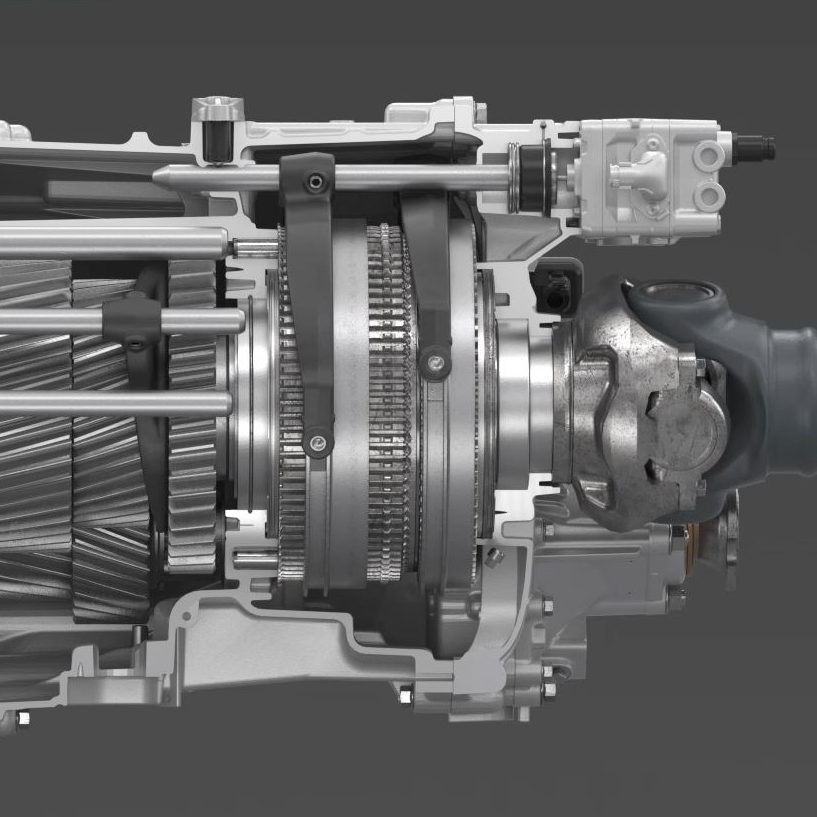

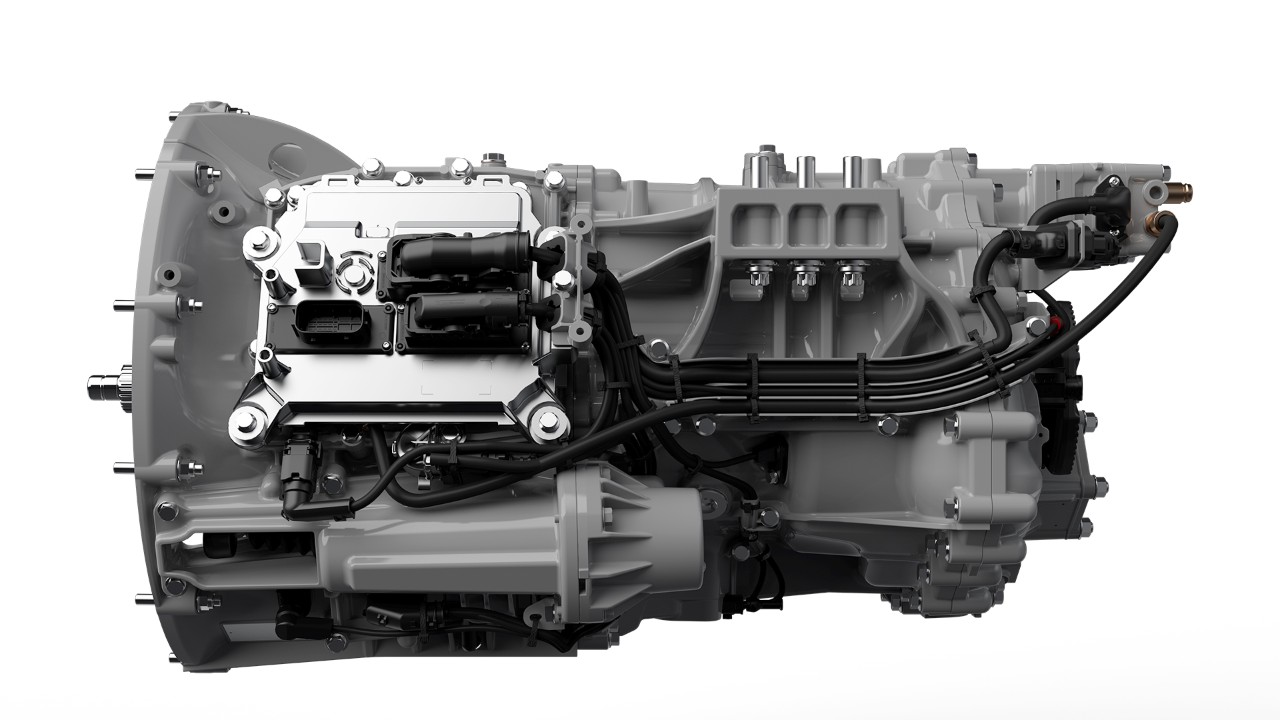

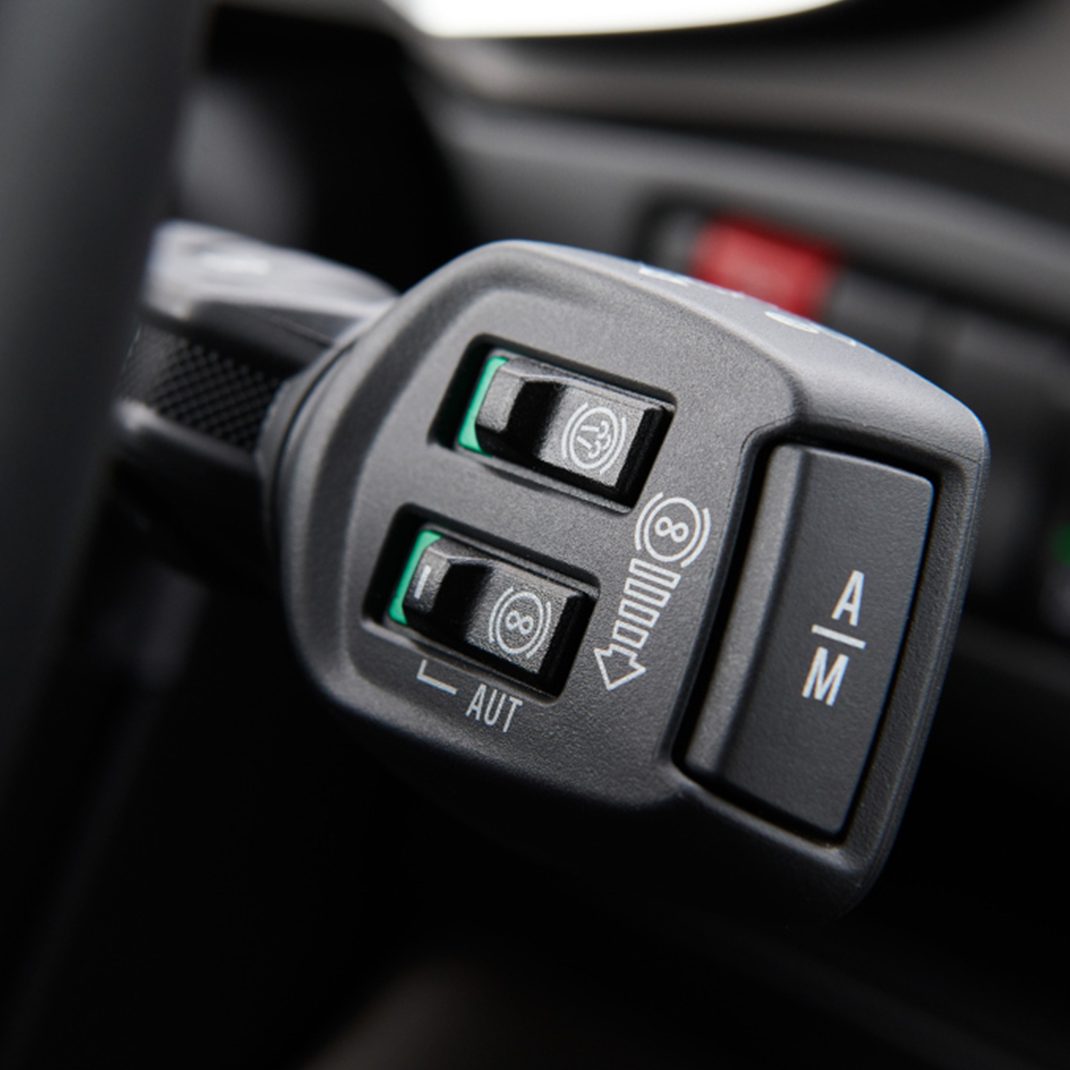

    THE SCANIA OPTICRUISE GEARBOX

    Scania’s new Opticruise G33CM gearbox, available for the high-out­put 13-litre 500 and 540 hp engines, features improved and speedy gearshifting in combination with better fuel consumption and excellent comfort.



    After six years of development and testing, we are introducing a gearbox with plenty of new technologies, such as variable oil volume, improved gear lubrication by oil spray function and a wider gear spread.



    Thanks to significantly reduced internal losses, and thereby improved energy efficiency, the G33CM itself offers fuel savings of one percent. The weight has been reduced by 60 kg to be used for increased payload. Additionally, it provides higher uptime with an oil change interval of up to one million km. All this to ensure that your total operating economy is optimised.

    The new Scania Opticruise gearbox G33CM is available for all V8 engines up to 660 hp as well as the high-out­put 13-litre 500 and 540 hp engines.

    Rear axle gears

    Scania’s rear axle range offers a robust and weight optimised design with a wide variety of gears and ratios, so you can find the optimal solution for your operation. All gears are offered with differential locks.

    Single driven single reduction

    Our gears for single reduction have low complexity and high efficiency and can master gross vehicle and train weights up to 78 tonnes with a wide range of gear ratios from 2.35 up to 5.57.

    Single driven hub reduction

    The single driven hub reduction axles are offered for the operations where startability, ground clearance and high gross train weights are favourable. They manage gross vehicle and train weights up to 80 tonnes with gear ratios from 3.80 up to 7.18.

    TANDEM DRIVEN SINGLE REDUCTION

    Tandem driven single reduction is offered for operations where you require traction together with optimal fuel efficiency. The RB662 + R660 tandem gear masters gross vehicle and train weights up to 80 tonnes with gear ratios from 2.92 up to 4.88.

    Tandem driven single hub reduction

    Our broad tandem driven hub reduction axles are robust and durable and offers great startability and ground clearance. It masters extremely high gross vehicles and train weights to up to 210 tonnes with gear ratios from 3.52 up to 7.63.

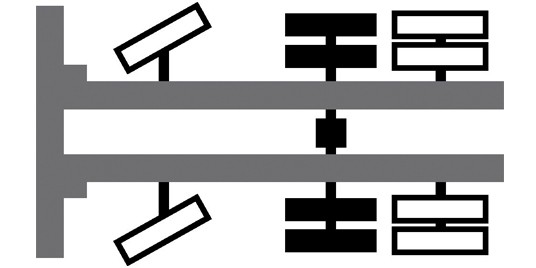

    Axle configurations

    Front, rear, fixed and steered tag axles – Scania can match the requirements of any application. The V8 can be teamed with a wide range of chassis configurations with different heights.

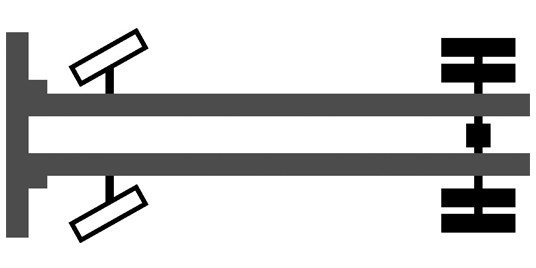

    4x2
    Chassis height
    Extra low, low, normal, high

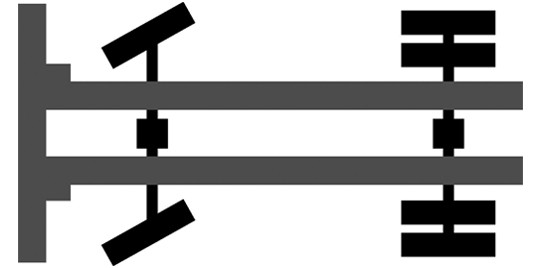

    4x4

    Chassis height
    High

    6x2
    Chassis height
    Normal

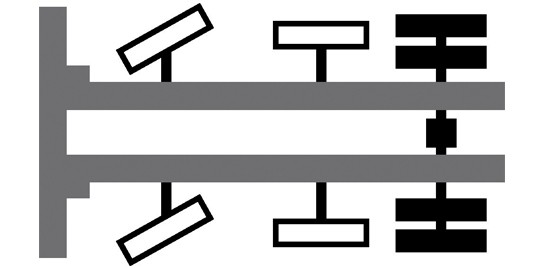

    6x2/2
    Chassis height
    Normal

    6x2 pusher

    6x2/4

    Chassis height
    Normal, low

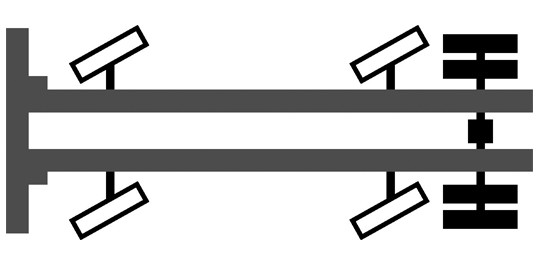

    6x2 twin-steer

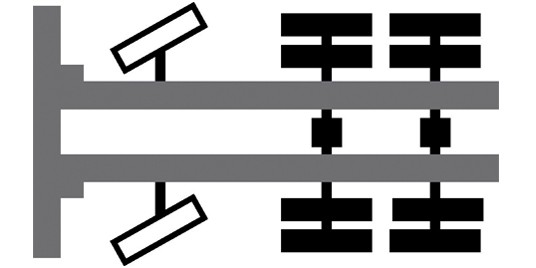

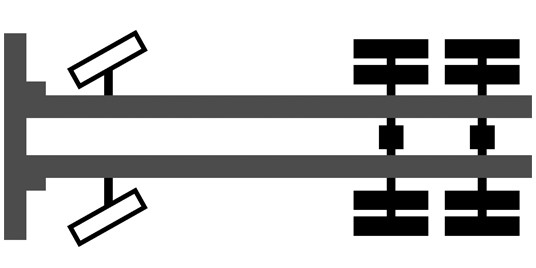

    6x4
    Chassis height
    Normal, high

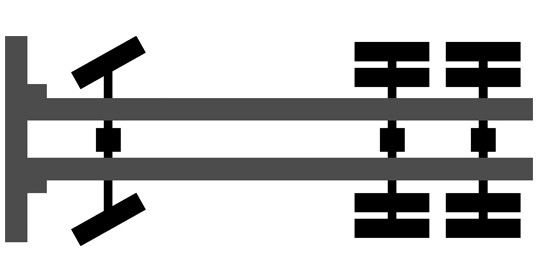

    6x6
    Chassis height
    High

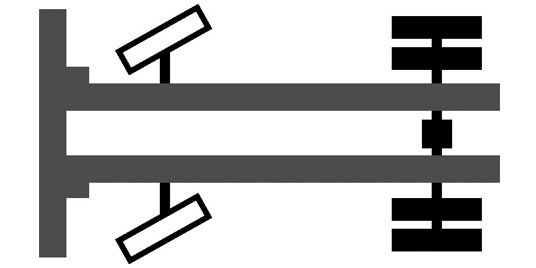

    4x2
    Chassis height
    Low, normal, high

    4x4
    Chassis height
    High

    6x2
    Chassis height
    Low, normal

    6x2/2
    Chassis height
    Normal

    6x2 pusher

    6x2/4

    Chassis height
    Normal
    6x2 twin-steer

    6x2*4

    Chassis height
    Low, normal

    6x4
    Chassis height
    Normal, high

    6x6
    Chassis height
    High

    8x2
    Chassis height
    Normal

    8x2*6

    Chassis height
    Low, normal

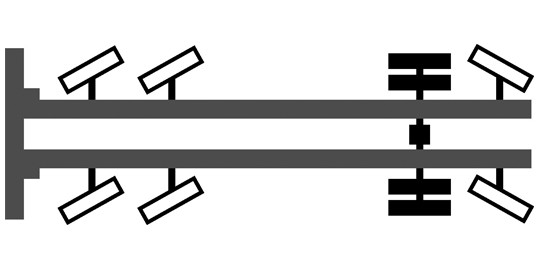

    8x2 rear-steer

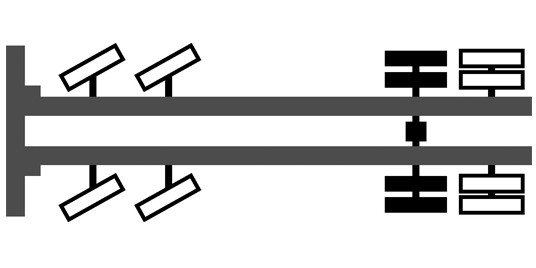

    8x2/4

    Chassis height
    Normal

    8x2 twin-steer

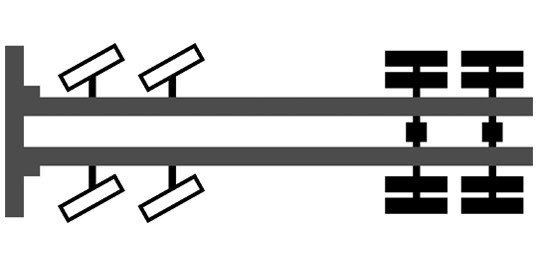

    8x4

    Chassis height
    Normal, high

    8x4*4

    Chassis height
    Normal

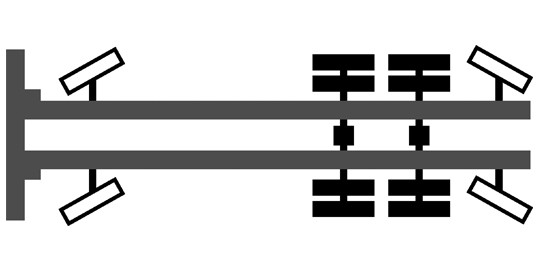

    8x4 rear-stear

    10x4*6

    Chassis height
    Normal

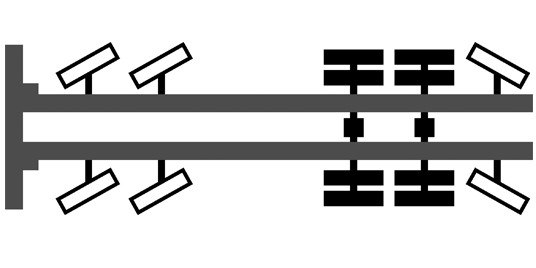

    10x4 rear-steer
