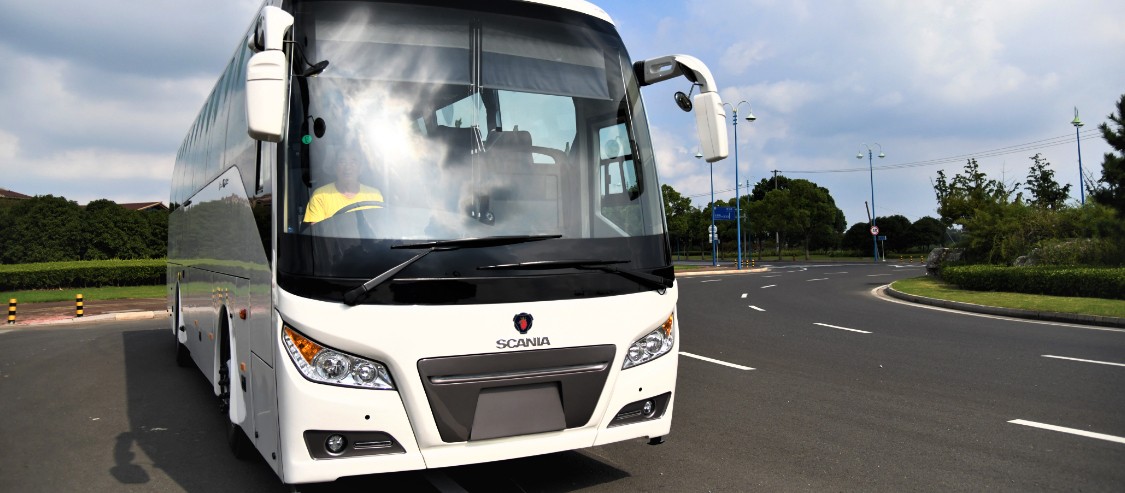

Scania Irizar
i6, i6S & i8
Powertrains
The high floor Scania Irizar is available with a wide range of energy efficient and reliable powertrains optimised for longer distance traffic.
| Volume | Output | Torque | Emission Control | Fuel options |
|---|---|---|---|---|
| 9-litre | 280 Hp (206 kW) | 1400 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
| 9-litre | 320 Hp (235 kW) | 1600 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
| 9-litre | 360 Hp (265 kW) | 1700 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
| 13-litre | 450 Hp (331 kW) | 2350 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
Fuel capacity (usable volumes):
275 - 460 litres
Gearboxes:
6-speed fully automatic gearbox (ZF EcoLife 2)
12-speed manual gearbox with Scania Opticruise and retarder
| Volume | Output | Torque | Emission Control | Fuel options |
|---|---|---|---|---|
| 9-litre | 280 Hp (206 kW) | 1350 Nm | EGR | Biogas, natural gas |
| 9-litre | 340 Hp (250 kW) | 1600 Nm | EGR | Biogas, natural gas |
| 9-litre | 410 Hp (302 kW) | 2000 Nm | EGR | Biogas, natural gas |
Fuel capacity (usable volumes):
1260 - 1875 litres (CBG/CNG)
560 - 1120 litres (LBG/LNG)
Gearboxes:
6-speed fully automatic gearbox (ZF EcoLife 2)
12-speed manual gearbox with Scania Opticruise and retarder

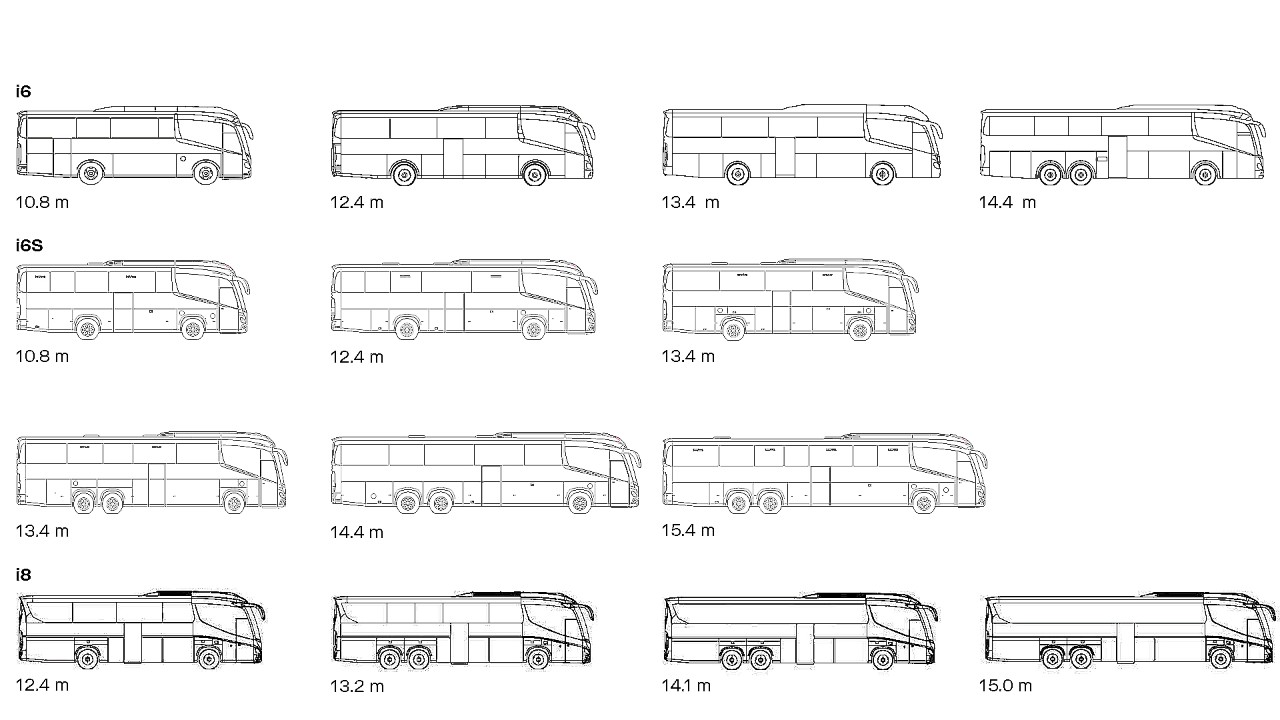

AXLES, DOORS, LENGHTS
The Scania Irizar i6, i6S and i8 are available in several variants, enabling them to meet different operational requirements.
Floor level
The K-chassis is suitable for a lot of different option of floor level. A common option is when the aisle in the coach is lowered, resulting in higher passenger comfort through fewer steps in the staircase, full standing height, and easier access to seats, without compromising on luggage volume.
Design features
Our coaches are produced in a long-standing partnership between Scania and Irizar. Everything from the chassis construction to the powertrain and the body has been developed and thoroughly tested with a focus on reliability and performance without compromising on energy efficiency.

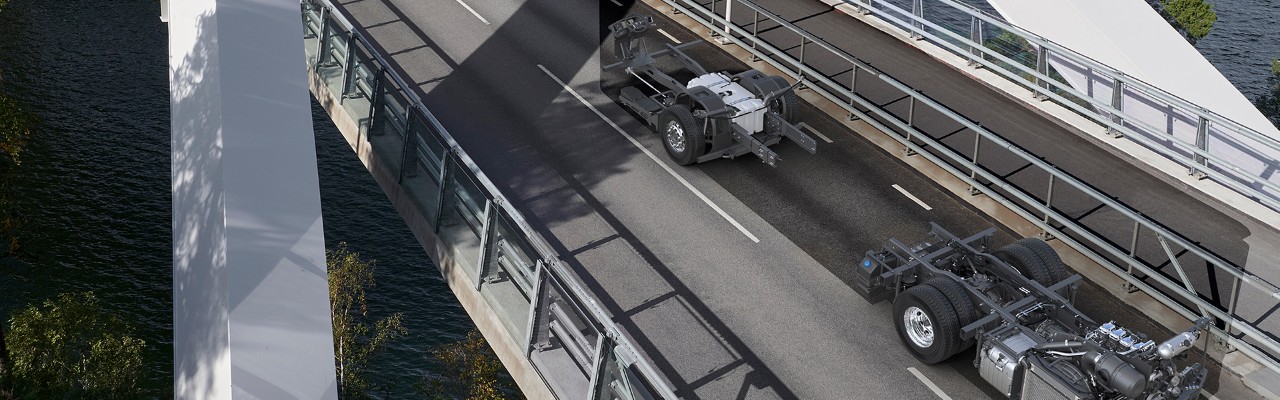

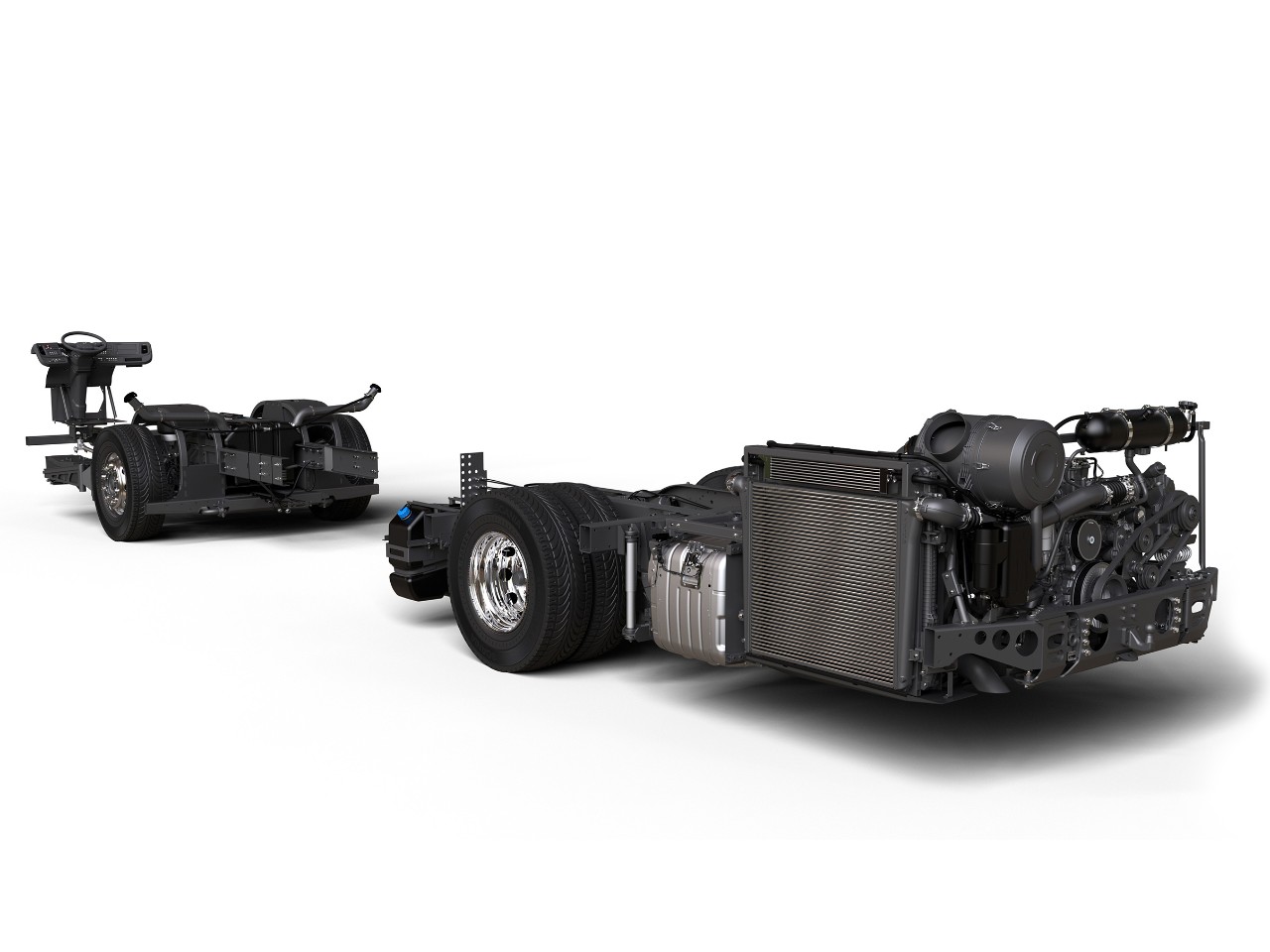

Chassis frame construction
The strengthened front axle means that load capacity is increased from 7.5 to 8.0 tonnes. It also enables optimised weight distribution between the front and rear axles.

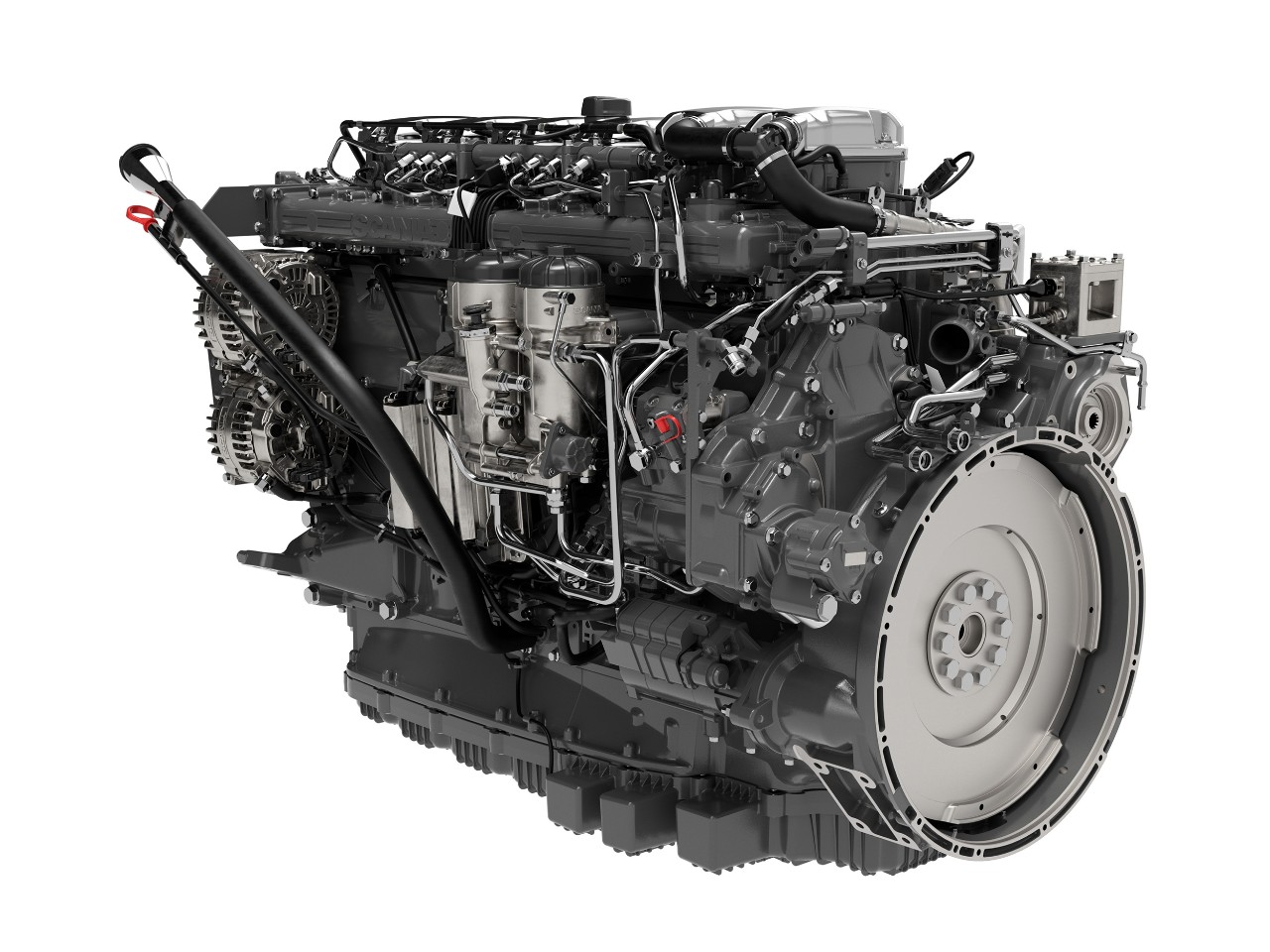

Powertrain technology
The highly dependable, durable and robust powertrains enable fuel savings of up to 9% while the addition of cruise control, with active prediction and the pulse and glide function, contributes further savings.
Electric system
The new power supply architecture comes with improved electronic control units (ECUs) and functions that improve performance and facilitate diagnostics for repair and maintenance. It also enables new functionality within ADAS, e‑mobility and autonomous transport systems.

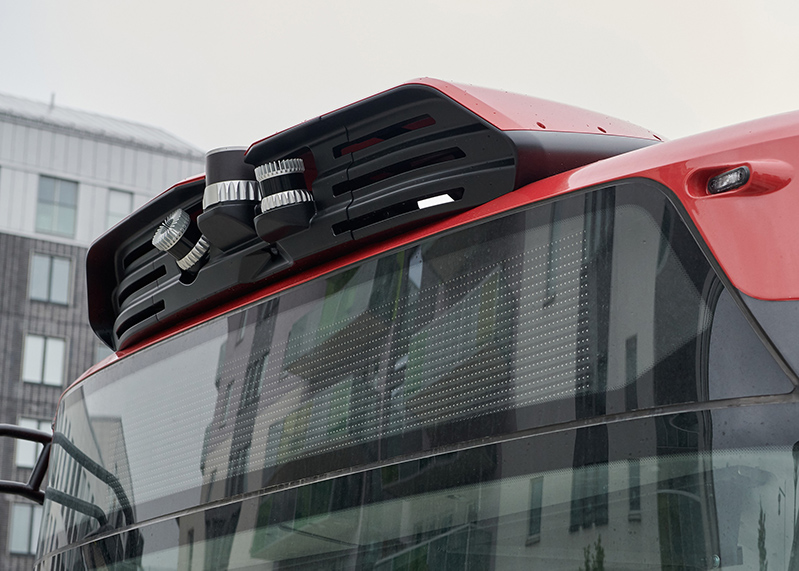

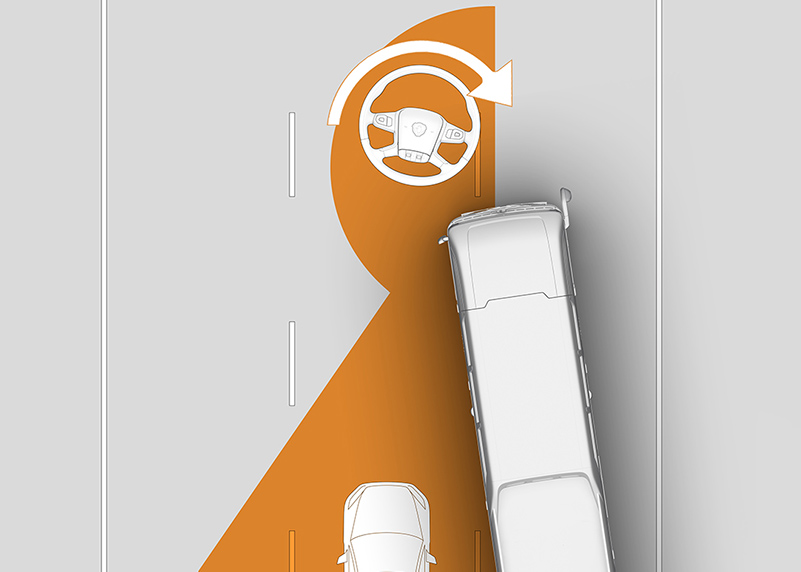

Safety systems
To prevent accidents, Scania coaches have built-in state-of-the-art safety systems and features. These systems help the driver by increasing their awareness of surrounding road users or even helping to control the vehicle when needed. Adaptive cruise control with active prediction, Lane departure warning, blind spot warning, electropneumatic parking brake, vulnerable road user collision warning, underrun protection.

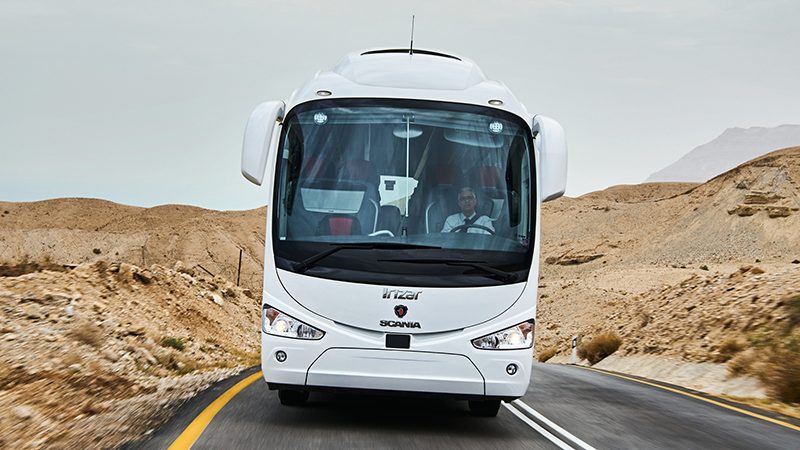

Driver area
Excellent visibility, an overall well-balanced vehicle, a powerful and reliable powertrain and great turning radius, makes for excellent drivability. Additionally, the driver is supported with advanced driver assistance systems giving enhanced control of the coach through improved and assisted handling, steering and braking.

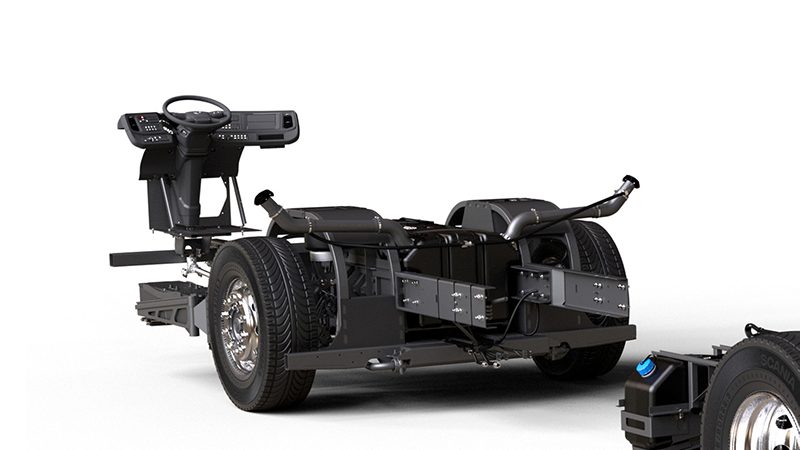

Front suspension technology
Without compromising on passenger capacity, the new independent front suspension offers excellent passenger comfort and increased load capacity.
