Electrified power systems

Are you interested in learning more about our Electrified Power Systems and would like to schedule a meeting?

Our in-house developed electric solutions draw on Scania´s long experience, knowledge, and technology from electrifying on-road vehicles, resulting in high system reliability and outstanding performance in a compact design. This also facilitates builder design, installation, and maintenance. Like all Scania power systems, the electric components are modular and scalable, and thereby suitable for a number of different applications.



All components work seamlessly together and are controlled with a common management system, while standard mechanical interfaces simplify integration with external components. With impeccable interaction between different components to achieve full system integration, electrifying vehicles, vessels, or equipment has never been smoother.

Hybrid electric

Scania´s hybrid electric power systems allow for the engine and e-machine respectively to be run together or as standalone power sources. The adapted speed range of the electric machine means that a reduction gear can be avoided, minimising energy loss and facilitating equipment design and installation. Altogether, the system enables improved powertrain performance with exceptional torque and response directly from idling, lowered fuel consumption that reduces operational cost and emission, as well as minimised noise when and where needed.

Fully electric

The high power density electric machine offers maximum torque and response directly from start. In combination with state-of-the-art batteries and other adjacent components, it eliminates tailpipe emissions and all but removes powertrain noise. In addition, the low maintenance requirements help reduce operational cost.

Technical information

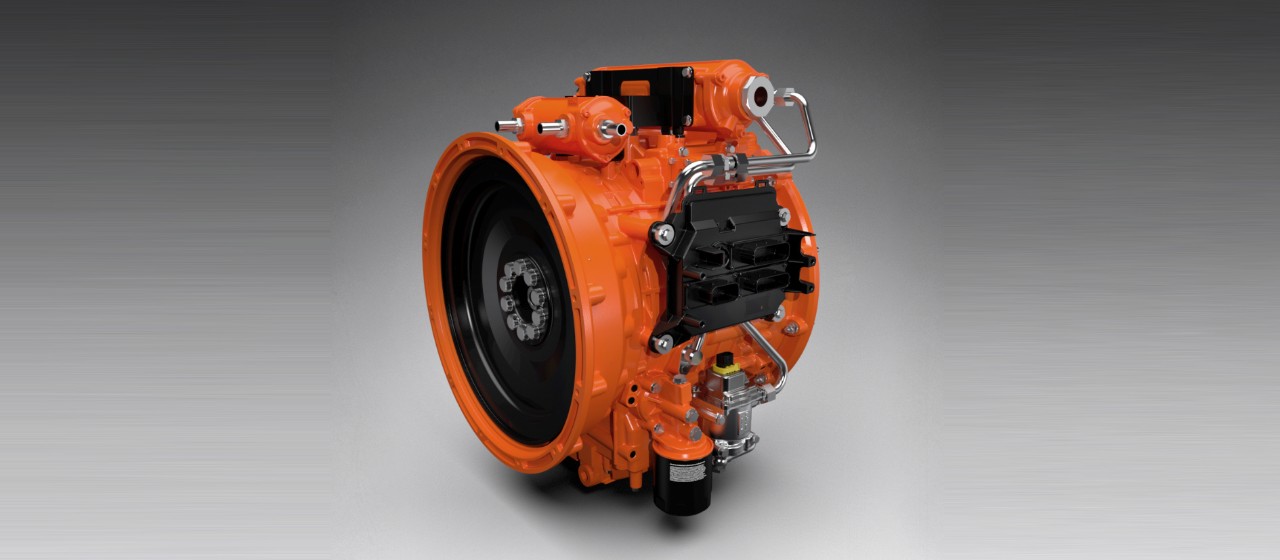

Electric machine

POWER

230 kW (313 mhp) continuous; 280 kW (381 mhp) peak @ 1,500 rpm



WEIGHT

250 kg (551 Ib)



DIMENSIONS (L x W x H)
490 x 610 x 590 mm (19.3" X 24" x 23.2")



Battery pack

BATTERY TECHNOLOGY

Lithium-Ion, NMC



INSTALLED ENERGY

104 kWh



WEIGHT

620 kg (1,367 Ib)



DIMENSIONS (L x W x H)
775 x 639 x 895 mm (30.5" x 25.2" x 35.2")
