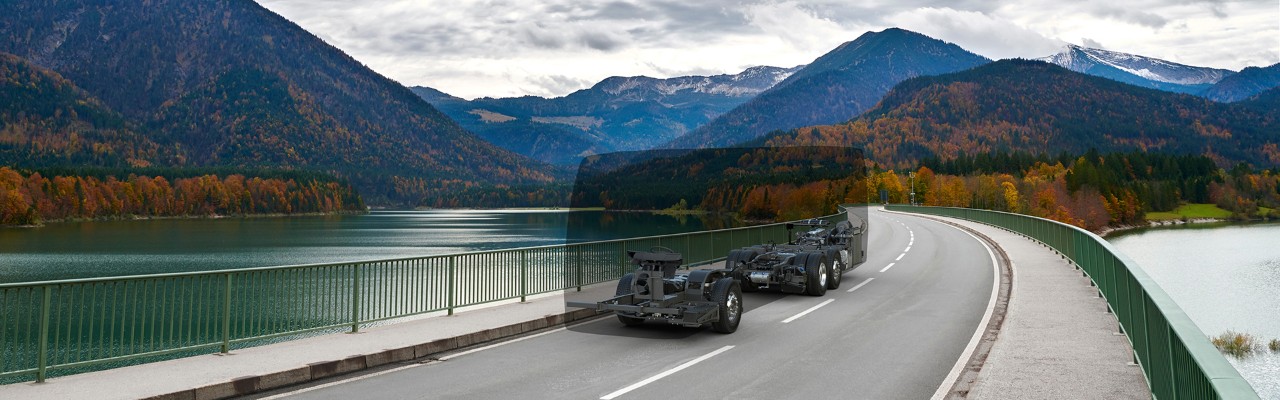

Scania K-chassis
High floor buses for travel operations
Powertrains
The high floor Scania K-chassis is available with a wide range of energy efficient and reliable powertrains optimised for longer distance traffic.
| Volume | Output | Torque | Emission Control | Fuel options |
|---|---|---|---|---|
| 9-litre | 320 Hp (235 kW) | 1600 Nm | Selective catalytic reduction (SCR) | Biodiesel/FAME, HVO, Diesel |
| 9-litre | 360 Hp (265 kW) | 1700 Nm | Selective catalytic reduction (SCR) | Biodiesel/FAME, HVO, Diesel |
| 13-litre | 370 Hp (272 kW) | 1900 Nm | Selective catalytic reduction (SCR) | HVO, Diesel |
| 13-litre | 410 Hp (302 kW) | 2150 Nm | Selective catalytic reduction (SCR) | Biodiesel/FAME, HVO, Diesel |
| 13-litre | 450 Hp (331 kW) | 2350 Nm | Selective catalytic reduction (SCR) | Biodiesel/FAME, HVO, Diesel |
| 13-litre | 500 Hp (368 kW) | 2550 Nm | Selective catalytic reduction (SCR) | HVO, Diesel |
Fuel capacity (usable volumes):
275 - 460 litres
Gearboxes:
6-speed fully automatic gearbox
12-speed gearbox with Scania Opticruise
High floor chassis with lower output engines are available under Urban chassis.
| Engine | Output | Torque | Emission Control | Fuel options |
|---|---|---|---|---|
| 9-litre | 340 Hp (250 kW) | 1600 Nm | Exhaust gas recirculation (EGR) | Biogas, Natural gas |
| 13-litre | 410 Hp (302 kW) | 2000 Nm | Exhaust gas recirculation (EGR) | Biogas, Natural gas |
Fuel capacity:
1260 - 1875 litres (CBG/CNG)
560 - 1120 litres (LBG/LNG)
Gearboxes:
6-speed fully automatic gearbox
12-speed gearbox with Scania Opticruise

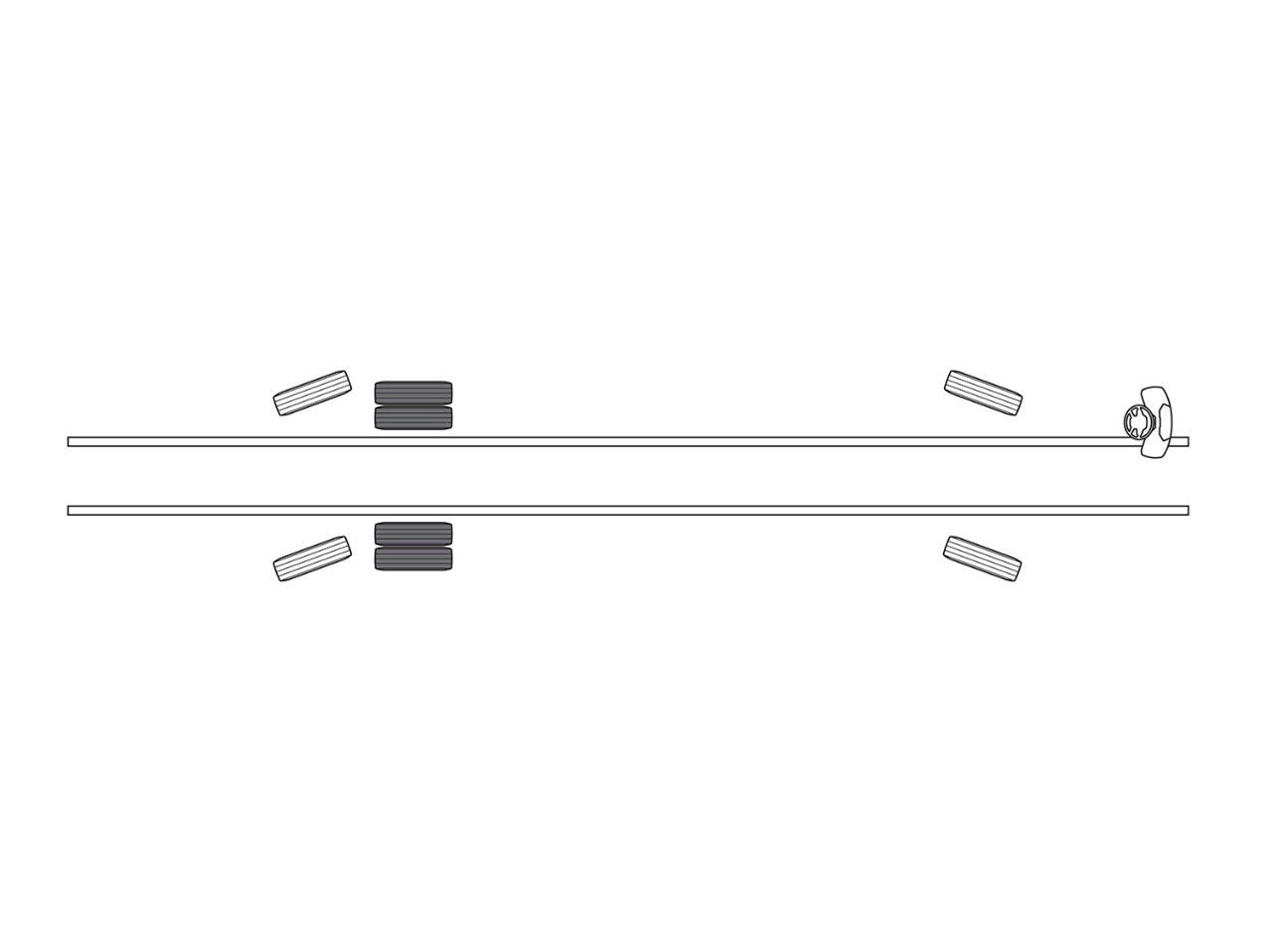

Axles
The high floor Scania K-chassis is available in several variants enabling it to meet different operational demands.

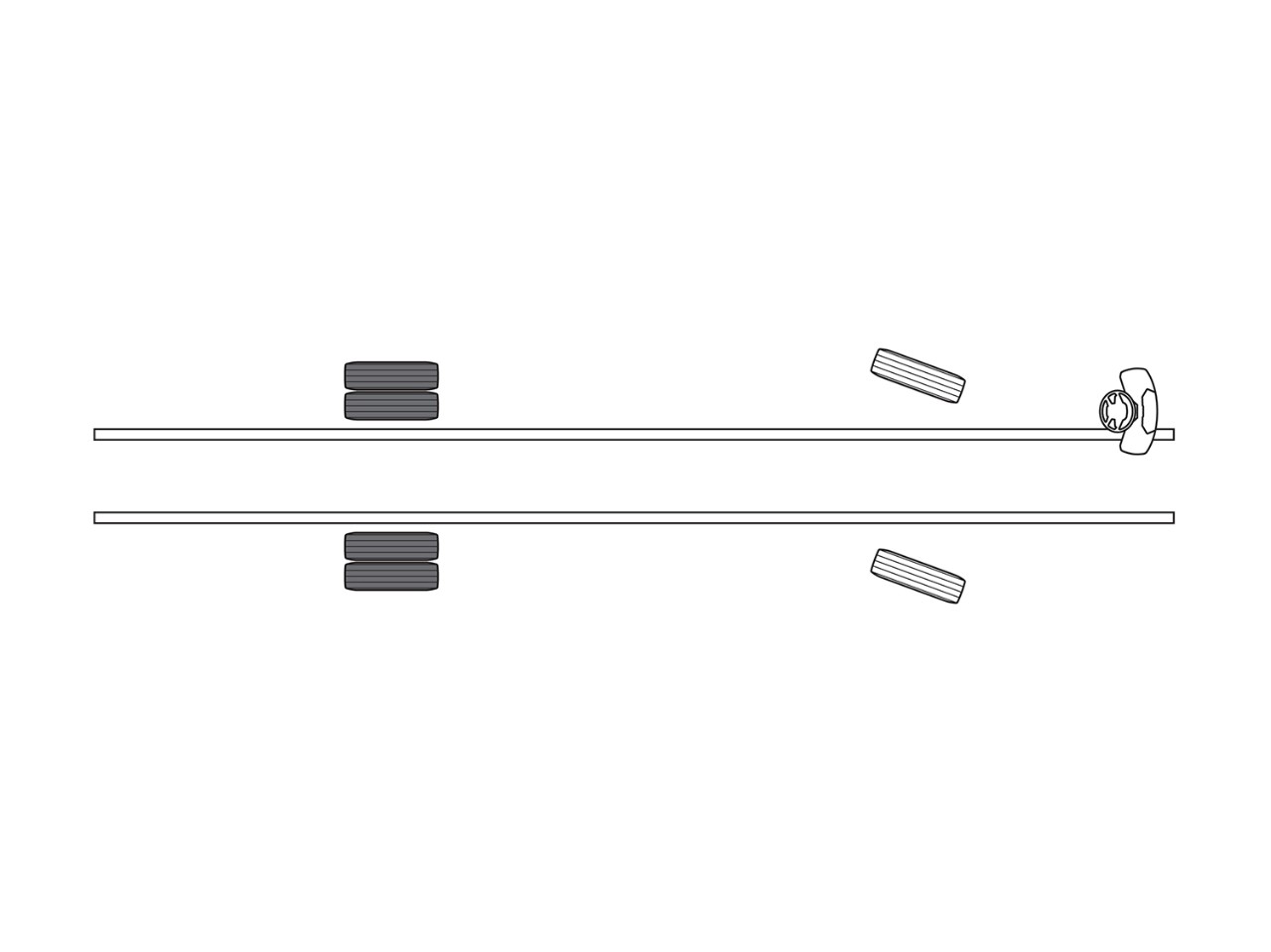

4x2 - independent front suspension or rigid axle

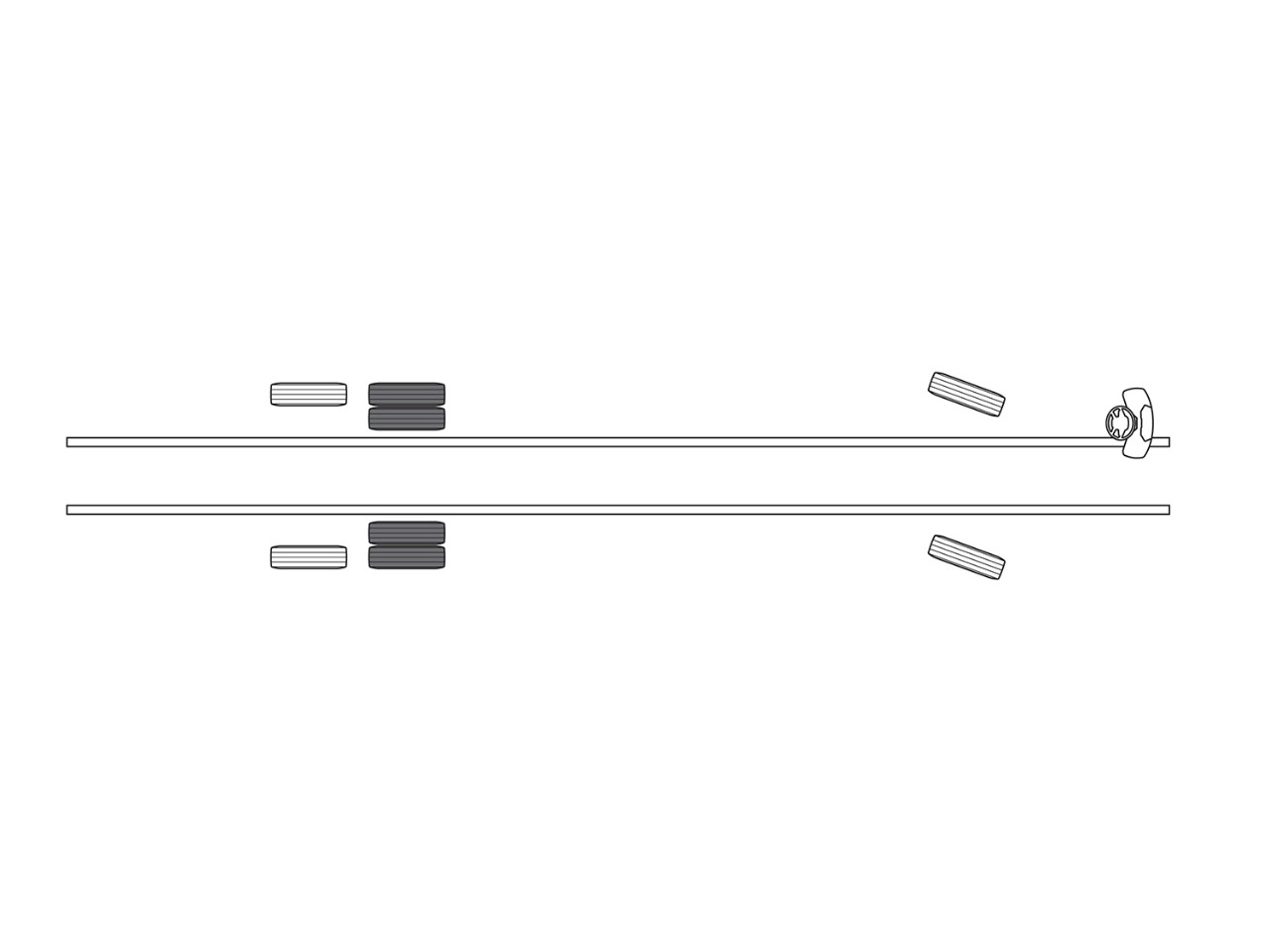

6x2 - independent front suspension or rigid axle
6x2*4 - independent front suspension or rigid axle
Floor level
The flexibility of the Scania K-chassis enables a variety of floor levels, including flat floor, lowered aisle, and double-decker configurations.
Design features
The high floor Scania K-chassis meet the needs of travel operations on every continent. Fully designed and produced in-house, it is as energy-efficient as it is reliable and durable, making it the ideal coach platform.

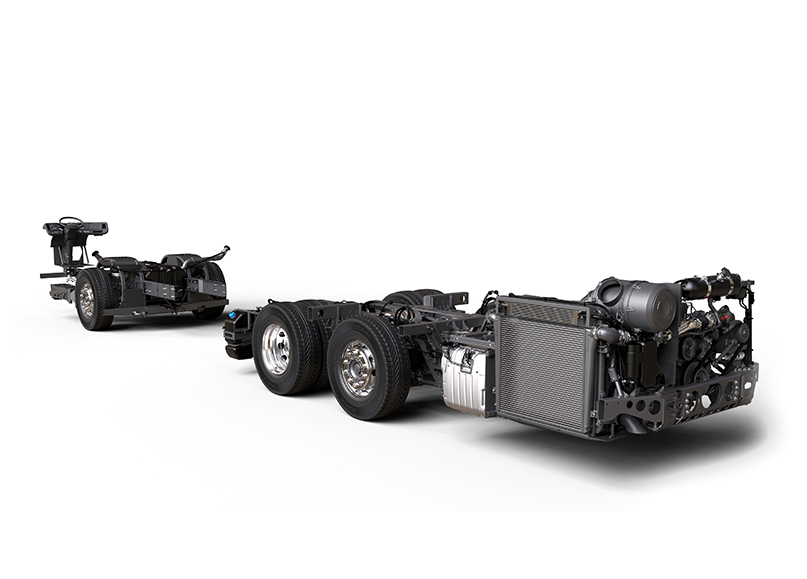

Quality chassis frame
The front axle, in combination with the ability to use wide tyres, enables a load capacity of 8 tonnes. This allows high passenger capacity and optimised weight distribution between the front and rear axles. Additionally, chassis weight is kept down without compromising robustness, contributing to low energy consumption.

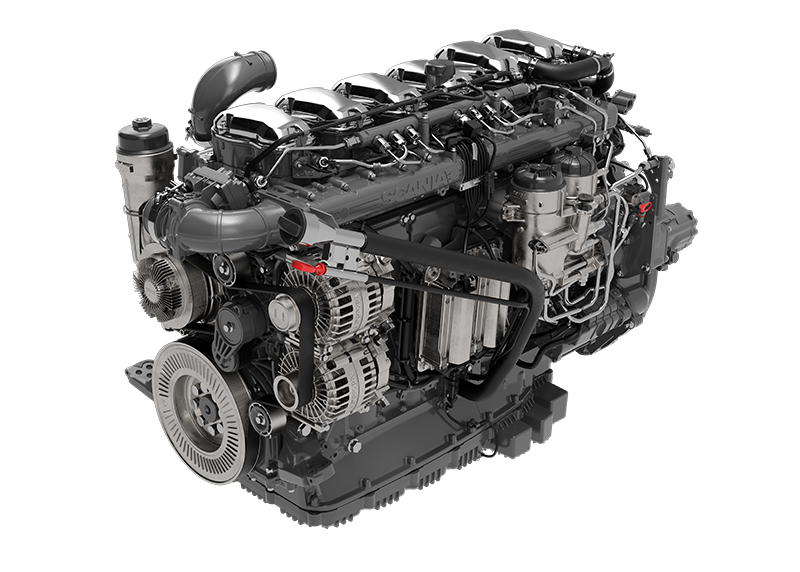

Advanced powertrain technology
The dependable, durable and robust powertrain enables highly energy-efficient operations, and the cruise control with active prediction and pulse and glide functions contribute to further savings.
Low-emission fuel options
Scania coaches can run on several renewable and commercially viable fuels – biogas (LBG/CBG), biodiesel/FAME and HVO – catering to varying market prerequisites. While Scania addresses emissions from all angles, running the vehicle on renewable fuels can alone offer CO2 savings of up to 90 %.

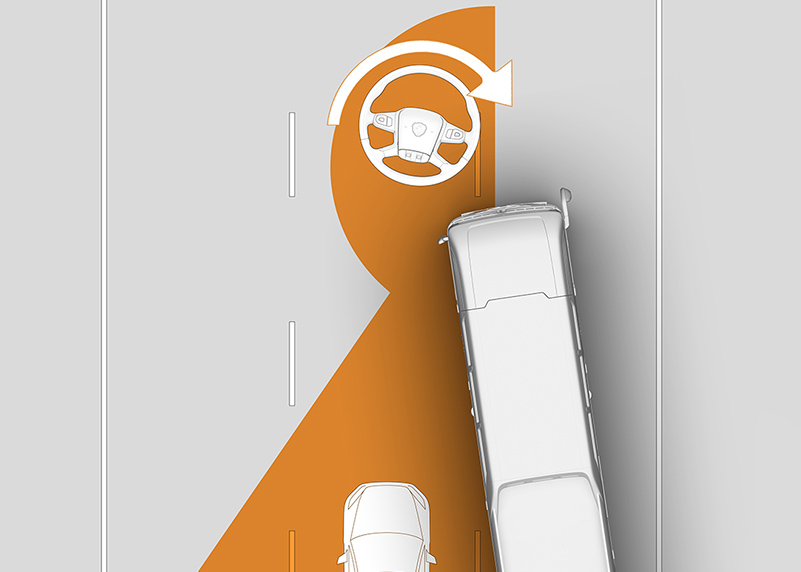

Safety in focus
Scania´s wide range of advanced driver assistance systems (ADAS) supports the driver, whether on the open highway or in busy city environments. The various functions increase road safety by keeping the driver alert and the vehicle in the right position, while also controlling the speed and distance from other road users.

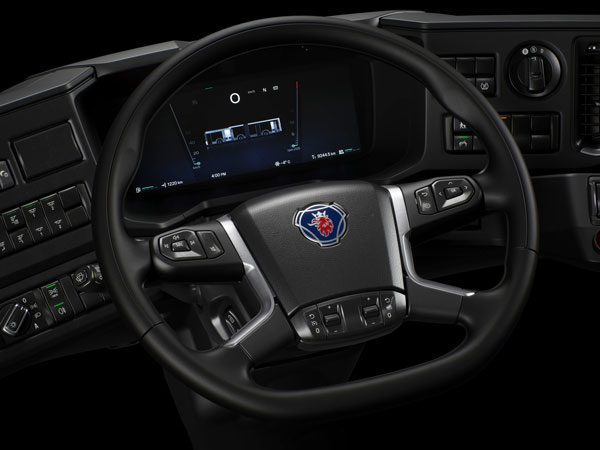

A first-class driving experience
An overall well-balanced vehicle, a powerful and reliable powertrain, good visibility, and a great turning radius make for excellent drivability. Additionally, the advanced driver assistance systems enhance control through assisted steering and braking, with high levels of ergonomics and comfort, the digital interface, and the overall quality feel further adding to the driving experience.
Unrivalled uptime
Well-designed and built on proven technology and components, the Scania K-chassis are both dependable and robust. Safety systems and digital services help prevent accidents, and sensitive and expensive components are protected in the event of a collision, avoiding costly and time-consuming repairs. Uptime services help minimise downtime and, when needed, remote diagnostics and excellent parts availability can rapidly get the coach back on the road.
