Urban battery electric truck
Battery electric truck
- Urban Transport
- Regional Transport
Battery Electric Vehicle for urban operations
Electrification changes everything – but our promise
You’ve always been able to rely on Scania for a complete solution for your business – and that’s not going to change. Electrification however brings new pieces to the puzzle that may seem complex.
Our promise: You don’t have to figure it out on your own
We will be with you every step of the way, and ensure you get an electrified solution that not only makes sense for the environment, but also for your business.
Scania battery electric truck
Urban BEV
Specification
Wheel configuration
4x2, 6x2, 6x2*4
Axle distance
3950 – 5750 mm
Cab options
L, P
Propulsion
Permanent magnet electric machine with oil spray cooling.
~295 kW 2,200 Nm (peak)
~230 kW 1,300 Nm (continuous)
60 kW / 530 Nm electromechanic Power Take-off
Batteries and charging
9 Lithium Ion batteries, available for all axle distances over 4350 mm: 300 kWh (installed)
5 Lithium Ion batteries, available for all axle distances over 3950 mm: 165 kWh (installed)

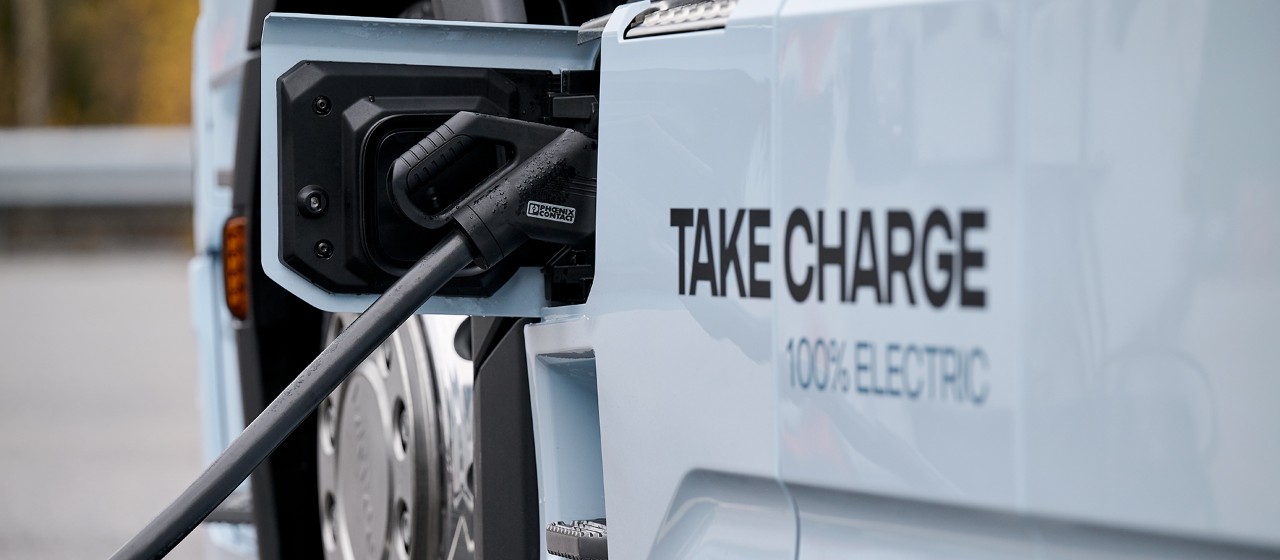

Charging
CCS type 2 plug-in connection up to 130 kW / 200A DC charging
GTW
Max 29 t
New urban BEV with expanded capabilities
Specification
Wheel configuration
Rigid: 4x2, 6x2, 6x2*4
Tractor: 4x2, 6x2
Axle distance
3950 - 5550 mm
Cab options
L, P and G
Propulsion
Permanent magnet electric machine with oil spray cooling.
~295 kW 2,200 Nm (peak)
~230 kW 1,300 Nm (continuous)
60 kW / 530 Nm electromechanic Power Take-off
Batteries and charging
Axle distance above 4150 mm:
- 624 kWh (installed) / 468 kWh (useable) or
- 416 kWh (installed) / 312 kWh (useable)
Axle distance 3950 - 4150 mm:
- 416 kWh (installed) / 312 kWh (useable)
Charging
CCS type 2 plug-in connection up to 375 kW / 500 A DC charging
GTW
Max 29 t
Scania electric truck solutions explained
Charging and infrastructure
To operate electric vehicles, you need to think about a lot more than just where to plug them in and when. We analyse your operation and help you plan a full solution, with grid connection, charging hardware and even green energy contracts.
Maintenance for maximised uptime
Electric vehicles come with new and different types of maintenance needs which require high voltage certifications and specialised tools - but our workshops are fit to handle it all.
Consultative sales process with tailored services
Exactly what services and expert guidance and support your business needs may vary from another business. We tailor a package for your operation, based in thorough analysis – to ensure your operation runs smoothly and that you feel supported both in the short and long term.
Interested in more information about charging?
We help you find the right charging solution for your specific need.
Range and power
The electric powertrain delivers substantial power and instant torque. Fully electric power take off enables continuous emission free operation of both hydraulics and refrigeration units. With up to 250 km range on a single charge, you can cover both short and medium range routes on pure electric power.
More than transports
The ability to perform 100% clean transports is an increasingly common requirement to secure new contracts, no matter if you do distribution of goods – or run waste collection, hook lifts, tippers, or concrete mixers. As such, it’s not just an investment in your physical fleet, but also in your brand, market competitiveness and your future.
Truly sustainable
We plan for the long term to make sure our batteries can be repurposed or recycled in the future. With our partners in energy and infrastructure, we can extend those contacts to you to help establish partnerships providing not only your own charging solution perfectly adapted for your operation – but also with contracts for clean renewable electricity.
A turnkey solution
Commercial electric operation is highly complex. For this reason every electric vehicle sale is packaged as a tailored turnkey solution, covering services, long-term guidance and advice, as well as charging and energy contract aspects. Naturally adapted fully to your needs and requirements – and varied in scale accordingly.
Battery Electric Vehicle with regional capability
Sustainability goes regional with our battery electric trucks. Available both as a rigid truck and as a trailer tractor – offering new drivelines, improved batteries, faster and more powerful charging capabilities, 370 km range at 40 tonnes load and 260 km range at the 64 tonnes max GTW. There are two electric machines to chose from, with power ranging from 270 to 450 kW continuous power. The electric machines can be supplemented by a range of PTO options, to power a wide variety of applications.
But powertrain aside, the battery packs are now assembled in-house at Scania, to perfectly fit both the strengthened chassis and the new placement of the charging interface – on the left hand side behind the driver door. Closely connected is the completely reworked heating and cooling system, keeping powertrain and battery components at their perfect operating temperature, and allowing excellent control of the cabin climate – right at your fingertips through our digital platforms. The aerodynamics of the cab has also been further improved with wind deflector extensions to ensure every kWh provides the maximum distance and range.
Trailer tractor
Specifications
Wheel configuration
4x2 and 6x2
Axle distance
3250 to 4150 mm
Cab options
R, S
Electric propulsion
Two electric machines with continuous power of 270, 300, 330, 360, 400 and 450 kW
PTO
Electrical and mechanical interfaces ranging from 30 to 260 kW
Battery options
624 kWh installed / 468 kWh available
416 kWh installed / 312 kWh available
Charging
280 km added range per hour of charging for GTW 40 tonnes
200 km added range per hour of charging for GTW 64 tonnes
GTW
Max 64 t
Rigid truck
Specifications
Wheel configuration
4x2, 6x2, 6x2*4
Axle distance
3250 to 5550 mm
Cab options
R, S
Electric propulsion
Two electric machines with continuous power of 270, 300, 330, 360, 400 and 450 kW
PTO
Electrical and mechanical interfaces ranging from 30 to 260 kW
Battery options
624 kWh installed / 468 kWh available
416 kWh installed / 312 kWh available
Charging
280 km added range per hour of charging for GTW 40 tonnes
200 km added range per hour of charging for GTW 64 tonnes
GTW
Max 64 t
Why choose Battery Electric Trucks?
✓ 100% emission-free operations – Including PTO
✓ Regional capabilities with good flexibility covering medium range routes
✓ Optimised total operating economy
✓ New contract opportunities for zero-emission vehicles
A turnkey solution
Every electric vehicle is sold as a turnkey solution, including a wide range of tailored services
Tailored Services
Electrifying transports is complex. Especially in terms of scaling up for the future. To maximize the return on your investment, we bundle a package of services, as well as long term guidance and hands-on advice, all tailored for your specific business and transport needs.
Repair and maintenance
How do you plan long-term maintenance for maximized uptime for technology that's so new it doesn't have a track record yet? Rather than leaving you with worries about the unplannable we make sure you have a contract that covers every contingency for the full service life of every vehicle and charger.
Discover our electric solutions
WANT A PERSONAL MEETING OR CALL?
Do you want more information about our electric solutions, or have specific questions? Leave your contact information here, and we will contact you to set up a call or a meeting to discuss your needs and plans for electrifying your operation.
